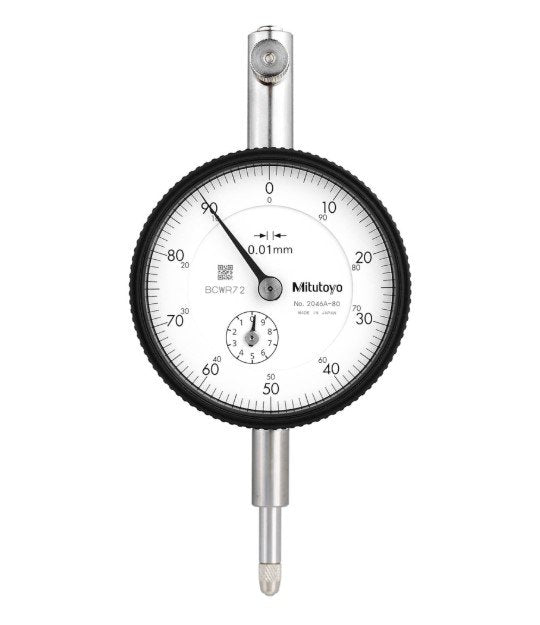

Mitutoyo 2046AB-80 | Peak Hold Dial Gauge | 10 mm Range, 0.01 mm Graduation, Flat Back
Part No. 2046AB-80 | Range 10 mm | Graduation 0.01 mm
Product Overview
The Mitutoyo 2046AB-80 is an ISO-type Series 2 dial gauge with a flat back, peak-hold function, 0.01 mm graduation and 10 mm measuring range. It is designed for long-travel measurement applications including height differences, steps, runout and machine alignment.
Made to ISO-type design dimensions, the 2046AB-80 should be matched with compatible stands and holders. Its 10 mm measuring range allows users to cover longer measurement travel in a single setup, reducing the need for repeated gauge repositioning.
The flat back provides a clean rear profile for applications where the gauge is mounted by its stem in a magnetic base, comparator stand or custom fixture. The peak-hold function retains the peak reading reached during measurement, allowing the maximum value to be read after the measurement.
Its mechanical movement is suited to routine inspection and day-to-day workshop use. General Tech Services LLC supplies genuine Mitutoyo instruments in Kuwait with support for product selection, pricing and availability.
For a lug back version, see the Mitutoyo 2046A-80.
Key Benefits
-
0.01 mm graduation for clear and practical readings
-
10 mm measuring range for long-travel inspection
-
ISO-type design for compatible inspection setups
-
Flat back for a clean rear profile during stem mounting
-
Peak-hold function for retaining maximum measurement values
-
Mechanical movement for routine workshop inspection
-
Genuine Mitutoyo product supplied locally in Kuwait
Call +965 9807 4888 for pricing and stock availability.
Who This Product Is Best For
-
Inspectors measuring heights, steps and runout over a longer stroke
-
Toolrooms and machine shops performing workpiece and fixture checks
-
Maintenance teams replacing an existing ISO-type flat back dial gauge
-
Users checking machine alignment and setup conditions
-
Calibration and inspection teams standardizing equipment on Mitutoyo
How to Use It
-
Mount the gauge securely by its stem in a suitable stand, magnetic base or fixture, keeping the plunger square to the measurement surface.
-
Apply a small amount of pre-load to the plunger and set the dial to zero against a suitable reference or master.
-
Move the workpiece or gauge across the feature being inspected and observe the measurement on the dial.
-
Use the peak-hold function when maximum deviation needs to be retained for reading after the measurement.
-
Retract the plunger carefully after use and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2046AB-80 dial gauge used for?
The Mitutoyo 2046AB-80 is designed for long-travel measurement of heights, steps, runout and machine alignment. Its 0.01 mm graduation and 10 mm range make it suitable for applications requiring extended measurement travel.
What are the graduation and range of the 2046AB-80?
The 2046AB-80 has a 0.01 mm graduation and a 10 mm measuring range.
What does ISO type mean on this dial gauge?
The 2046AB-80 is listed as an ISO-type dial gauge with Series 2 design dimensions. The stand, holder or fixture should be checked for compatibility with this design.
What is the benefit of the flat back?
The flat back provides a clean, compact rear profile and is suitable for setups where the gauge is mounted by its stem in a stand, magnetic base or fixture.
What does peak hold mean on a dial gauge?
The peak-hold function retains the peak reading reached during measurement, allowing the maximum value to be read after the measurement rather than having to observe the pointer at the exact moment the peak occurs.
Should I choose the flat back 2046AB-80 or the lug back 2046A-80?
Both models have a 0.01 mm graduation and 10 mm measuring range. The 2046AB-80 has a flat back, while the 2046A-80 uses a lug back. Select the version that matches your existing mounting arrangement.
Is the genuine Mitutoyo 2046AB-80 available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Call +965 9807 4888 for current pricing, lead time and stock availability.
Request Pricing and Availability
For genuine Mitutoyo 2046AB-80 supply in Kuwait, contact General Tech Services LLC for current pricing, availability and delivery information.
Call +965 9807 4888 to request a quote.
