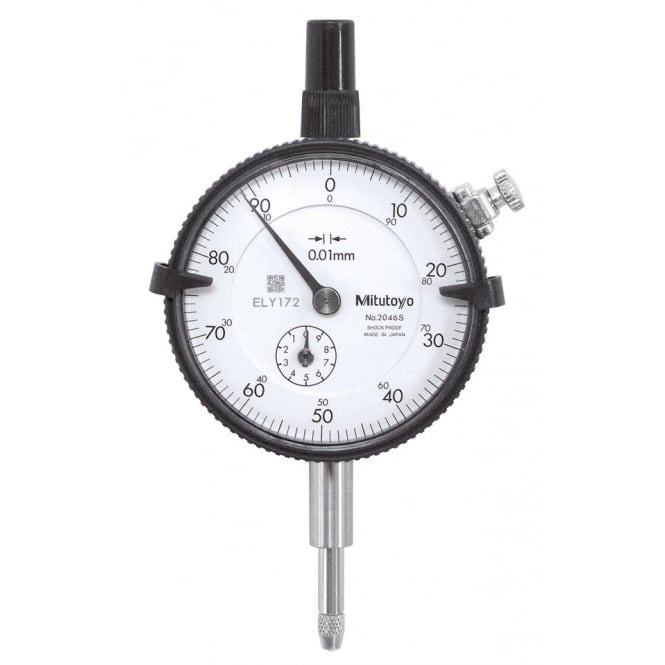

Mitutoyo 2046S Standard Dial Indicator Range 10mm, Graduation 0.01 mm
A Mitutoyo multi-revolution dial indicator suited to general measurement applications. The dual-reading scale aids measurement in both directions.Standard 0.01 mm graduation dial gauges having a bezel with an outside diameter of 57 mm. All types come with limit markers and a bezel clamp as standard.
• The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
• Secure adhesion between the bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
• The stem and plunger are made of high-strength quench-hardened stainless steel suitable for heavyduty use.
• A carbide contact point is used.
• The grand gear is made of stainless steel with high resistance to wear and deformation.
• Application of a hard coating on the surface of the crystal makes it highly resistant to scratching and chemical attack.
