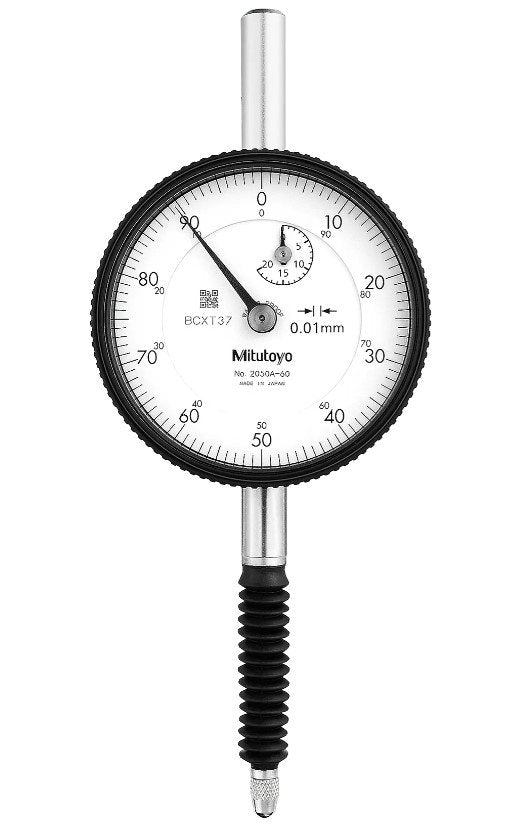

Mitutoyo 2050A-60 | Lug Back Dial Gauge | 20 mm, 0.01 mm, ISO
Part No. 2050A-60 | Range 20 mm | Graduation 0.01 mm | Lug Back
Product Overview
The Mitutoyo 2050A-60 is an ISO-type Series 2 plunger dial gauge with a lug back, 0.01 mm graduation and a 20 mm measuring range. It is designed for long-travel measurement applications including checking heights, steps, runout and machine alignment.
The lug back provides a dedicated rear mounting point for securing the gauge to a suitable bracket, fixture or inspection setup. Its mechanical movement is designed for dependable day-to-day measurement in workshop, inspection and maintenance environments. As an ISO-type gauge, compatibility with the intended stand, holder or mounting arrangement should be confirmed before installation.
For a flat-back configuration, see the Mitutoyo 2050AB-60.
Key Benefits
-
0.01 mm graduation for clear and practical readings
-
20 mm measuring range for long-travel inspection
-
ISO-type Series 2 design for compatible inspection setups
-
Lug back for mounting to suitable brackets and fixtures
-
Plunger-type construction for dimensional deviation measurement
-
Suitable for height, step, runout and machine-alignment checks
-
Genuine Mitutoyo product supplied by General Tech Services LLC, Kuwait
Who This Product Is Best For
-
Inspectors measuring heights, steps and runout over a longer stroke
-
Toolrooms and machine shops performing fixture and machine-alignment checks
-
Maintenance teams replacing an existing ISO-type lug-back dial gauge
-
Quality-control departments standardizing inspection equipment
-
Buyers requiring a genuine Mitutoyo dial gauge with a 20 mm measuring range
How to Use It
-
Mount the gauge using the lug back or a suitable stem arrangement on a rigid bracket or fixture.
-
Position the plunger squarely against the surface or feature being measured.
-
Apply a small amount of pre-travel and rotate the bezel to establish zero against a reference surface or master.
-
Move the workpiece or gauge across the feature and observe the dial reading to determine the deviation.
-
Retract the plunger carefully after measurement and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2050A-60 dial gauge used for?
The Mitutoyo 2050A-60 is designed for long-travel measurement of heights, steps, runout and machine alignment. Its 20 mm measuring range allows these measurements to be performed over a longer stroke.
What are the graduation and range of the 2050A-60?
The 2050A-60 has a 0.01 mm graduation and a 20 mm measuring range.
What does ISO-type mean on this dial gauge?
The 2050A-60 is listed as an ISO-type design rather than an ANSI/AGD-type design. Check that the intended stands, holders and mounting equipment are compatible with this pattern.
What is the benefit of a lug back?
The lug back provides a dedicated rear mounting point that allows the gauge to be secured to a suitable bracket, fixture or inspection setup.
Should I choose the lug-back 2050A-60 or the flat-back 2050AB-60?
Both models have a 0.01 mm graduation and 20 mm measuring range. The 2050A-60 has a lug back, while the 2050AB-60 has a flat back. Select the configuration that matches your mounting arrangement.
Is the genuine Mitutoyo 2050A-60 available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Call +965 9807 4888 for current pricing, lead time and stock availability.
Request Pricing and Availability
For pricing, lead time and current stock availability of the Mitutoyo 2050A-60, call +965 9807 4888. General Tech Services LLC supplies genuine Mitutoyo measurement equipment in Kuwait.
