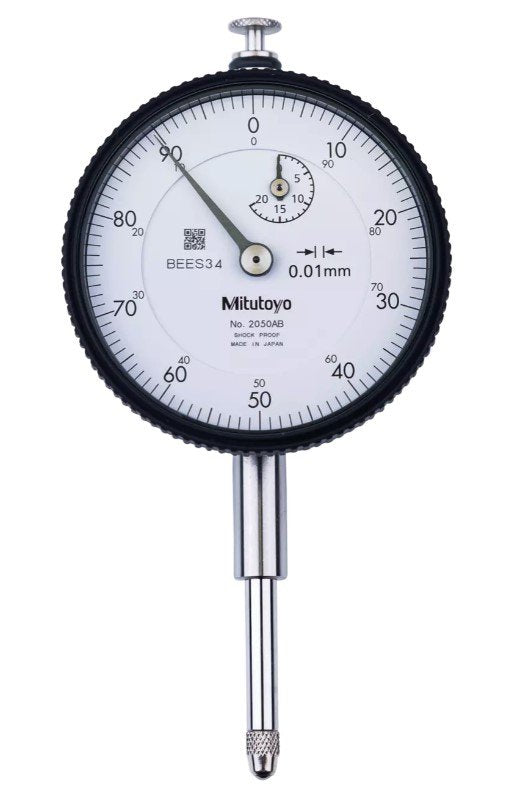

Mitutoyo 2050AB-60 | Flat Back Dial Gauge | 20 mm, 0.01 mm, ISO
Part No. 2050AB-60 | Range 20 mm | Graduation 0.01 mm | Flat Back
Product Overview
The Mitutoyo 2050AB-60 is an ISO-type Series 2 plunger dial gauge with a flat back, 0.01 mm graduation and a 20 mm measuring range. Its mechanical movement is designed for dependable day-to-day measurement in inspection and workshop applications.
The 2050AB-60 is designed for long-travel measurement of heights, steps, runout and machine alignment. With 20 mm of measuring range, it provides extended measurement travel in a single setup, reducing the need to repeatedly reset the gauge.
The flat back provides a clean, low-profile rear surface for applications where the gauge is mounted by its stem in a magnetic base, comparator stand or custom fixture. Its ISO-type design dimensions should be checked against the intended stand, holder or fixture before installation.
Need a lug-back configuration instead? See the Mitutoyo 2050A-60.
Key Benefits
-
0.01 mm graduation for clear and practical readings
-
20 mm measuring range for long-travel inspection
-
ISO-type Series 2 design for compatible inspection setups
-
Flat back for stem mounting in stands, magnetic bases and fixtures
-
Mechanical movement for dependable workshop measurement
-
Suitable for measuring heights, steps, runout and machine alignment
-
Genuine Mitutoyo part supplied by General Tech Services LLC, Kuwait
Who This Product Is Best For
-
Inspectors measuring heights, steps and runout over an extended stroke
-
Toolrooms and machine shops performing workpiece and machine alignment inspection
-
Maintenance teams replacing an existing ISO-type flat-back dial gauge
-
Inspection and calibration environments using mechanical dial gauges
-
Buyers standardizing compatible Mitutoyo inspection equipment
How to Use It
-
Mount the gauge securely by its stem in a rigid stand, magnetic base or suitable fixture, keeping the plunger aligned with the surface being measured.
-
Apply a small amount of pre-travel to the plunger and set the dial to zero against a reference surface or master.
-
Move the workpiece or gauge across the feature being inspected and read the deviation from the dial.
-
Retract the plunger carefully after measurement and store the gauge clean, dry and protected from damage.
Frequently Asked Questions
What is the Mitutoyo 2050AB-60 dial gauge used for?
The Mitutoyo 2050AB-60 is designed for long-travel measurement of heights, steps, runout and machine alignment. Its 20 mm range provides extended travel for inspection applications.
What are the graduation and range of the 2050AB-60?
The 2050AB-60 has a 0.01 mm graduation and a 20 mm measuring range.
What does ISO-type mean on the Mitutoyo 2050AB-60?
The gauge is specified as an ISO-type design rather than an ANSI/AGD-type design. The intended stand, holder or fixture should therefore be checked for compatibility before installation.
What is the benefit of a flat back?
The flat back provides a clean, low-profile rear surface and is suitable for applications where the gauge is mounted by its stem in a stand, magnetic base or custom fixture.
What is the difference between the 2050AB-60 and 2050A-60?
The 2050AB-60 is the flat-back version, while the 2050A-60 uses a lug-back configuration. Both are specified with a 0.01 mm graduation and 20 mm measuring range. The appropriate version depends on the mounting arrangement.
Is the genuine Mitutoyo 2050AB-60 available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Call +965 9807 4888 for current pricing, lead time and availability.
Request Pricing and Availability
For pricing and current stock availability of the Mitutoyo 2050AB-60 in Kuwait, call +965 9807 4888. General Tech Services LLC can assist with product availability and configuration requirements.
