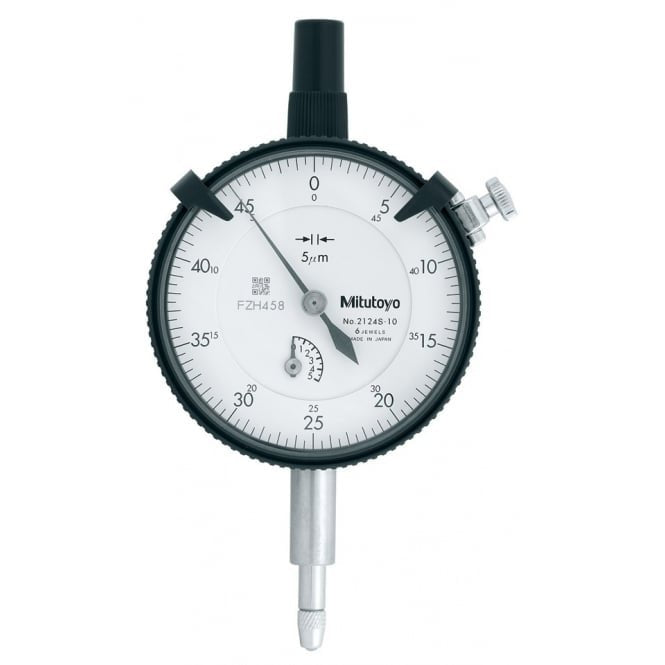

Mitutoyo 2124S-10 | Dial Indicator | 5 mm, 0.005 mm, Jewelled
Reading in 0.005 mm steps across 5 mm of travel, the Mitutoyo 2124S-10 is a dial indicator. It is intended for comparison measurement, with a ±0-50 dial.
- Dial reading ±0-50; measuring force 1.5 N or less
- Jewelled movement for low friction (2124S-10)
- Non-digital display, no data output (2124S-10)
- Specifications
- Features
- Downloads
| Part Number | 2124S-10 |
| Brand | Mitutoyo |
| Product Type | Dial Indicator |
| Range | 5 mm (0.5 mm) |
| Graduation | 0.005 mm |
| Accuracy | ±12 |
| Dial Reading | ±0-50 |
| Measuring Force | 1.5 N or less |
| Bearing | Jewelled |
comes with limit markers and a bezel clamp.
• The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
• Secure adhesion between the bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
• The plunger is made of high-strength quench hardened stainless steel which resists arduous use.
• A carbide contact point is used.
• A special alloy is used for the sector gears to provide improved wear resistance.
• The indicator uses jewelled bearings, providing excellent indication sensitivity and durability.
• Application of a hard coating on the surface of the crystal makes it highly resistant to scratching and chemical attack.
