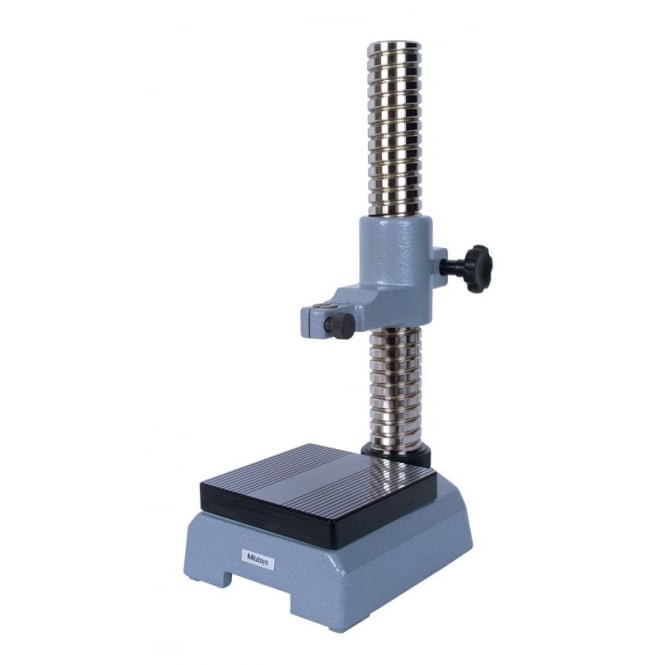

Mitutoyo 215-505-10 | Comparator Stand | 275 mm
Listed at 275 mm, the Mitutoyo 215-505-10 comparator stand stands on a stable cast-iron base and column. A grid-type anvil keeps flat workpieces from wringing, while the bracket offers fine adjustment of the indicator.
- 275 mm version
- Grid anvil prevents wringing of flat parts
- Fine-adjust mounting bracket
- Cast-iron construction
- Specifications
- Features
- Downloads
| Part Number | 215-505-10 |
| Brand | Mitutoyo |
| Type | Comparator stand |
| Size (as listed) | 275 mm |
| Base and Column | Cast iron |
| Bracket | Fine adjustment |
| Anvil | Grid type |
• Comparator stands have a very stable, cast iron base which enables precise measurement.
• The partially serrated anvil prevents very flat workpieces from wringing to it and the 2.3 μm flatness (or better) promotes accurate measurement.
• The 215-505-10 model has a threaded column which enables easy and precise coarse adjustment.
• Serrated anvils 110 x 110 mm are supplied with 215-405-10, and 150 x 150 mm with 215-505-10 models.
