Mitutoyo 2330SB-10 | Flat Back Dial Indicator | 30 mm, 0.01 mm, Jewelled
Part No. 2330SB-10 | Range 30 mm | Graduation 0.01 mm | Flat Back
Product Overview

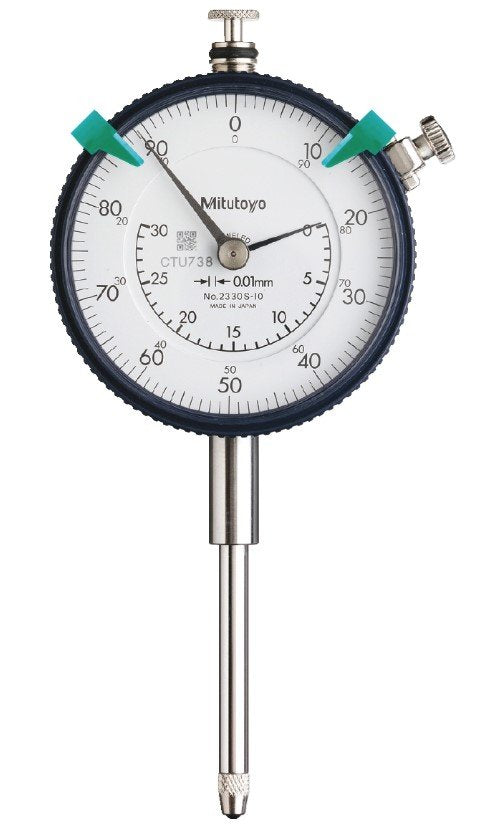

The Mitutoyo 2330SB-10 is a Series 2 plunger dial gauge with a flat-back design, 0.01 mm graduation and a 30 mm measuring range. It is designed for long-travel measurement applications including heights, steps, runout and machine alignment.
With 0.01 mm graduation over 30 mm of travel, the 2330SB-10 allows longer-travel measurements to be performed in a single setup, reducing the need for repeated gauge repositioning. Its flat back provides a clean, low-profile rear configuration suitable for stem mounting in a magnetic base, comparator stand or custom fixture.
The mechanical movement is suited to regular measurement and inspection work in workshop environments. The gauge is listed as a Series 2 model; verify compatibility with the intended stand, holder or fixture before installation.
The Mitutoyo 2052AB-19 is also listed with a 0.01 mm graduation and 30 mm range. Verify the exact configuration required before ordering.
Key Benefits
-
0.01 mm graduation for clear and practical measurement readings
-
30 mm measuring range for long-travel inspection
-
Series 2 design for compatible inspection setups
-
Flat back provides a clean profile for stem mounting
-
Mechanical movement suited to regular workshop measurement
-
Suitable for measuring heights, steps, runout and machine alignment
-
Genuine Mitutoyo 2330SB-10 supplied by General Tech Services LLC in Kuwait
Who This Product Is Best For
-
Inspectors measuring heights, steps and runout over a long travel
-
Toolrooms and machine shops performing workpiece and machine alignment checks
-
Maintenance teams replacing an existing flat-back dial gauge
-
Inspection departments using magnetic bases, comparator stands or custom fixtures
-
Calibration and metrology environments using compatible Mitutoyo equipment
How to Use It
-
Mount the gauge securely by its stem in a suitable stand, magnetic base or fixture, keeping the plunger correctly aligned with the measurement surface.
-
Apply suitable preload to the plunger and rotate the bezel to establish the reference position or zero.
-
Move the workpiece or gauge across the feature being inspected and observe the pointer movement.
-
Read the deviation directly from the dial and compare it with the required measurement or tolerance.
-
Retract the plunger carefully after use and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2330SB-10 used for?
The Mitutoyo 2330SB-10 is designed for long-travel measurement of heights, steps, runout and machine alignment.
What are the graduation and measuring range of the 2330SB-10?
The 2330SB-10 has a 0.01 mm graduation and a 30 mm measuring range.
What series is the Mitutoyo 2330SB-10?
The 2330SB-10 is listed as a Mitutoyo Series 2 dial gauge. Compatibility with existing holders and fixtures should be confirmed before installation.
What is the benefit of the flat-back design?
The flat back provides a clean, low-profile rear configuration that is suitable for stem mounting in compatible stands, magnetic bases and fixtures.
Can the 2330SB-10 be used for machine alignment?
Yes. The gauge is designed for long-travel measurement applications that include machine alignment, as well as heights, steps and runout.
What is the difference between the 2330SB-10 and 2052AB-19?
Both are listed with a 0.01 mm graduation, 30 mm range and flat-back configuration. Verify the exact model configuration required for your existing measurement setup before ordering.
Is the genuine Mitutoyo 2330SB-10 available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Contact us for current availability, lead time and pricing.
Request Pricing and Availability
For genuine Mitutoyo 2330SB-10 dial gauges in Kuwait, contact General Tech Services LLC for pricing, availability and supply information.
+965 9807 4888
