Mitutoyo 2414AB | Flat Back Dial Gauge | 0.5 in, 0.001 in, ANSI/AGD
Part No. 2414AB | Range 0.5 inch | Graduation 0.001 inch | Flat Back
Product Overview

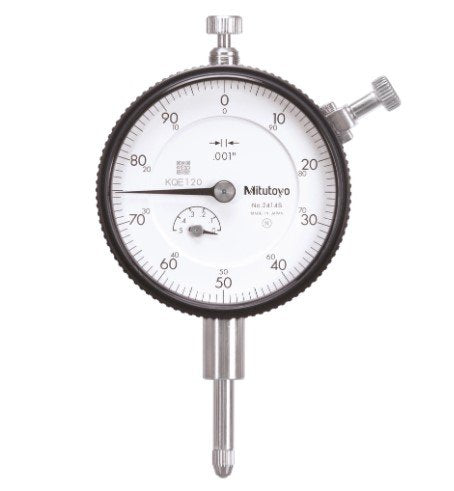

The Mitutoyo 2414AB is an ANSI/AGD-type Series 2 plunger dial gauge with a flat back, 0.001 inch graduation and a 0.5 inch measuring range. It is designed for long-travel comparative measurement of heights, steps, runout and machine alignment.
Made to American Gage Design dimensions, the 2414AB is suited to inspection stands, fixtures and holders designed around this standard. Its 0.5 inch measuring range provides extended travel in a single setup, reducing the need to repeatedly reset the gauge during longer inspection tasks.
The flat back provides a clean, low-profile rear for applications where the gauge is mounted by its stem in a magnetic base, comparator stand or custom fixture. Its mechanical movement is suited to dependable day-to-day inspection use.
Key Benefits
-
0.001 inch graduation for clear, practical comparative readings
-
0.5 inch measuring range for long-travel inspection
-
ANSI/AGD-type Series 2 design for compatibility with suitable stands, holders and accessories
-
Flat back for stem mounting in inspection stands, magnetic bases and custom fixtures
-
Mechanical movement for dependable workshop use
-
Genuine Mitutoyo part supplied by General Tech Services LLC in Kuwait
Who This Product Is Best For
-
Inspectors measuring heights, steps and runout over a longer measurement stroke
-
Toolrooms and machine shops checking workpieces, fixtures and machine alignment
-
Maintenance teams replacing an existing ANSI/AGD flat-back dial gauge
-
Calibration and inspection environments using long-travel dial gauges
-
Buyers standardizing inspection equipment around Mitutoyo gauges
How to Use It
-
Mount the gauge securely by its stem in a rigid stand, magnetic base or suitable fixture, keeping the plunger square to the surface being measured.
-
Pre-load the plunger slightly and rotate the bezel to set the zero position against a suitable reference surface or master.
-
Move the workpiece or gauge across the feature being inspected and observe the pointer movement to determine the deviation.
-
Retract the plunger gently after measurement and store the gauge in a clean, dry and protected environment.
Frequently Asked Questions
What is the Mitutoyo 2414AB dial gauge used for?
The 2414AB is designed for long-travel comparative measurement of heights, steps, runout and machine alignment. Its 0.001 inch graduation and 0.5 inch measuring range provide extended travel for these inspection applications.
What are the graduation and measuring range of the 2414AB?
The Mitutoyo 2414AB has a 0.001 inch graduation and a 0.5 inch measuring range.
What does ANSI/AGD mean on the Mitutoyo 2414AB?
ANSI/AGD refers to the American Gage Design standard for dial indicators. Gauges built to this design use standardized dimensions for compatibility with suitable stands, holders and accessories.
What is the benefit of the flat-back design?
The flat back provides a clean, compact rear profile that is suited to stem mounting in inspection stands, magnetic bases and custom fixtures.
What is the difference between the 2414AB and 2415A?
Both models are specified with a 0.001 inch graduation and a 0.5 inch measuring range. The 2414AB has a flat-back design, while the 2415A uses a lug-back design. Selection depends on the mounting arrangement of the inspection setup.
Is the genuine Mitutoyo 2414AB available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Call +965 9807 4888 for current pricing, lead time and stock availability.
Request Pricing and Availability
For genuine Mitutoyo 2414AB supply in Kuwait, contact General Tech Services LLC for current pricing and availability.
Call +965 9807 4888 for a quotation and stock information.
