Mitutoyo 2416AB | Flat Back Dial Gauge | 1 in, 0.001 in, ANSI/AGD
Part No. 2416AB | Range 1 inch | Graduation 0.001 inch | Flat Back
Product Overview

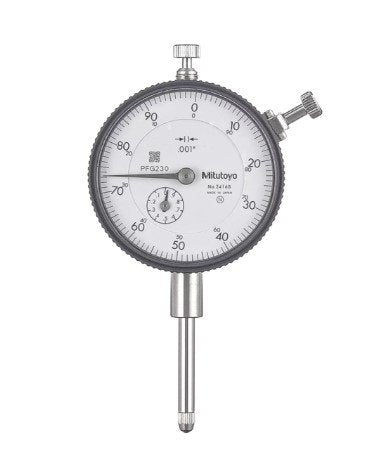

The Mitutoyo 2416AB is an ANSI/AGD-type Series 2 plunger dial gauge with a flat-back design, 0.001 inch graduation and a 1 inch measuring range. It is designed for long-travel measurement applications including heights, steps, runout and machine alignment.
Made to American Gage Design dimensions, the 2416AB is suitable for compatible stands, fixtures and holders used in inspection rooms and machine shops. Its 1 inch measuring range allows longer-travel measurements to be performed in a single setup without repeatedly resetting the gauge.
The flat back provides a clean, low-profile rear configuration that suits stem mounting in a magnetic base, comparator stand or custom fixture. Its mechanical movement is designed for regular measurement and inspection work in workshop environments.
The Mitutoyo 2416AB-06 is also listed with a flat-back configuration, 0.001 inch graduation and 1 inch range. Verify the exact configuration and part number required before ordering.
Key Benefits
-
0.001 inch graduation for clear and practical measurement readings
-
1 inch measuring range for long-travel inspection
-
ANSI/AGD-type Series 2 design for compatible inspection setups
-
Flat back provides a clean profile for stem mounting
-
Mechanical movement suited to regular workshop measurement
-
Suitable for measuring heights, steps, runout and machine alignment
-
Genuine Mitutoyo 2416AB supplied by General Tech Services LLC in Kuwait
Who This Product Is Best For
-
Inspectors measuring heights, steps and runout over a long travel
-
Toolrooms and machine shops performing workpiece and machine alignment checks
-
Maintenance teams replacing an existing ANSI/AGD flat-back dial gauge
-
Inspection departments using magnetic bases, comparator stands or custom fixtures
-
Calibration and metrology environments using compatible Mitutoyo inspection equipment
How to Use It
-
Mount the gauge securely by its stem in a suitable stand, magnetic base or fixture, keeping the plunger correctly aligned with the measurement surface.
-
Apply suitable preload to the plunger and rotate the bezel to establish the reference position or zero.
-
Move the workpiece or gauge across the feature being inspected and observe the pointer movement.
-
Read the deviation directly from the dial and compare it with the required measurement or tolerance.
-
Retract the plunger carefully after use and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2416AB used for?
The Mitutoyo 2416AB is designed for long-travel measurement of heights, steps, runout and machine alignment.
What are the graduation and measuring range of the 2416AB?
The 2416AB is listed with a 0.001 inch graduation and a 1 inch measuring range.
What does ANSI/AGD mean on the Mitutoyo 2416AB?
ANSI/AGD refers to the American Gage Design dimensional standard used for compatible dial indicators and related inspection equipment.
What is the benefit of the flat-back design?
The flat back provides a clean, low-profile rear configuration that is suitable for stem mounting in compatible stands, magnetic bases and fixtures.
Can the 2416AB be used for machine alignment?
Yes. The gauge is designed for long-travel measurement applications that include machine alignment, as well as heights, steps and runout.
What is the difference between the 2416AB and 2416AB-06?
Both are listed as ANSI/AGD-type flat-back dial gauges with a 0.001 inch graduation and 1 inch range. Because the exact configuration of the base 2416AB is not further specified in the supplied information, verify the required part number before ordering.
Is the genuine Mitutoyo 2416AB available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Contact us for current availability, lead time and pricing.
Request Pricing and Availability
For genuine Mitutoyo 2416AB dial gauges in Kuwait, contact General Tech Services LLC for pricing, availability and supply information.
+965 9807 4888
