Mitutoyo 2417AB | Flat Back Dial Gauge | 1 in, 0.001 in, ANSI/AGD
Part No. 2416A-10 | Range 1 inch | Graduation 0.001 inch | Lug Back
Product Overview

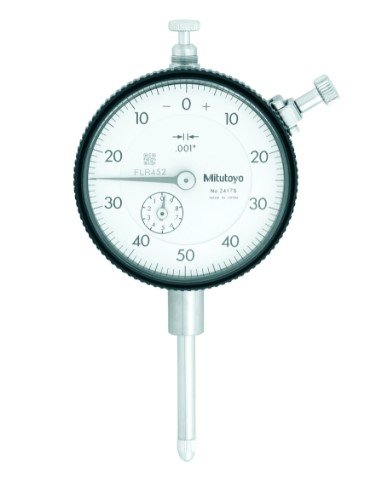

The Mitutoyo 2416A-10 is an ANSI/AGD-type Series 2 plunger dial gauge with a lug back, 0.001 inch graduation and a 1 inch measuring range. It uses jewelled bearings for smooth, sensitive pointer movement and is designed for long-travel measurement applications including heights, steps, runout and machine alignment.
Made to American Gage Design dimensions, the 2416A-10 is suitable for use with compatible stands, fixtures and holders commonly used in inspection rooms and machine shops. The lug back provides a dedicated rear mounting point for brackets and fixtures where direct mounting is preferred.
The 1 inch measuring range allows longer-travel measurements to be completed without repeatedly resetting the gauge. For applications requiring a flat-back configuration, the Mitutoyo 2416AB-10 provides the corresponding flat-back design.
Key Benefits
-
0.001 inch graduation for clear and practical measurement readings
-
1 inch measuring range for long-travel inspection
-
ANSI/AGD-type Series 2 design for compatibility with suitable inspection setups
-
Lug back provides a dedicated mounting point for brackets and fixtures
-
Jewelled bearings support smooth, sensitive mechanical movement
-
Suitable for measuring heights, steps, runout and machine alignment
-
Genuine Mitutoyo 2416A-10 supplied by General Tech Services LLC in Kuwait
Who This Product Is Best For
-
Inspectors performing long-travel measurements of heights, steps and runout
-
Toolrooms and machine shops checking workpieces, fixtures and machine alignment
-
Maintenance teams replacing an existing ANSI/AGD lug-back dial gauge
-
Inspection departments standardizing mechanical dial gauges across their equipment
-
Calibration and metrology environments using compatible Mitutoyo inspection equipment
How to Use It
-
Mount the gauge securely using its lug back or compatible stem mounting arrangement, with the plunger aligned correctly to the measurement surface.
-
Apply a suitable amount of preload and rotate the bezel to set the reference position or zero.
-
Move the workpiece or gauge across the feature being inspected and observe the pointer movement.
-
Read the deviation from the dial and compare it with the required measurement or tolerance.
-
Retract the plunger carefully after use and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2416A-10 used for?
The Mitutoyo 2416A-10 is designed for long-travel measurement of heights, steps, runout and machine alignment.
What are the graduation and measuring range of the 2416A-10?
The 2416A-10 has a 0.001 inch graduation and a 1 inch measuring range.
What does ANSI/AGD mean on the Mitutoyo 2416A-10?
ANSI/AGD refers to the American Gage Design dimensional standard used for compatible dial indicators and related inspection equipment.
What is the benefit of the lug-back design?
The lug back provides a dedicated rear mounting point that can be used with suitable brackets, fixtures and inspection setups.
Does the 2416A-10 use jewelled bearings?
Yes. The Mitutoyo 2416A-10 uses jewelled bearings to support smooth and sensitive mechanical movement.
What is the difference between the 2416A-10 and 2416AB-10?
The 2416A-10 has a lug-back design, while the 2416AB-10 has a flat-back design. Both are listed with a 0.001 inch graduation and 1 inch measuring range.
Is the genuine Mitutoyo 2416A-10 available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Contact us for current availability, lead time and pricing.
Request Pricing and Availability
For genuine Mitutoyo 2416A-10 dial gauges in Kuwait, contact General Tech Services LLC for pricing, availability and supply information.
+965 9807 4888
