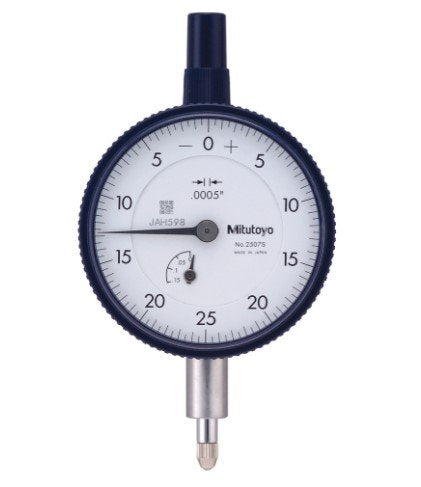

Mitutoyo 2507AB | Flat Back Dial Gauge | 0.125 in, 0.0005 in, ANSI/AGD
Part No. 2507AB | Range 0.5 inch | Graduation 0.001 inch | Flat Back
Product Overview
The Mitutoyo 2507AB is an ANSI/AGD-type Series 2 plunger-type dial gauge with a flat back, 0.001 inch graduation and a 0.5 inch measuring range. It is designed for long-travel measurement of heights, steps, runout and machine alignment.
Made to American Gage Design dimensions, the 2507AB is suitable for use with compatible stands, holders and fixtures commonly used in inspection and machine-shop environments. Its flat back provides a clean rear profile for applications where the gauge is mounted by its stem in a magnetic base, comparator stand or custom fixture.
The mechanical movement supports dependable day-to-day measurement, while the 0.5 inch range allows longer-travel inspection without frequent gauge repositioning. For applications requiring a lug-back configuration, the Mitutoyo 2507A provides the corresponding alternative.
Key Benefits
-
0.001 inch graduation for clear and practical readings
-
0.5 inch measuring range for long-travel inspection
-
ANSI/AGD-type Series 2 design for compatibility with common inspection setups
-
Flat back for stem mounting in stands, magnetic bases and fixtures
-
Plunger-type construction for comparative measurement applications
-
Mechanical movement for routine workshop and inspection use
-
Genuine Mitutoyo part supplied by General Tech Services LLC in Kuwait
Who This Product Is Best For
-
Inspectors measuring heights, steps, runout and machine alignment
-
Toolrooms and machine shops performing comparative dimensional inspection
-
Maintenance teams replacing an existing ANSI/AGD flat-back dial gauge
-
Quality-control departments using long-travel mechanical dial gauges
-
Buyers standardising inspection equipment around Mitutoyo products
How to Use It
-
Mount the gauge securely by its stem in a suitable stand, magnetic base or fixture, keeping the plunger aligned with the surface being measured.
-
Apply a small amount of pre-load to the plunger and set the dial to zero against a suitable reference surface or master.
-
Move the workpiece or gauge across the feature being inspected and observe the dial reading to determine the deviation.
-
Retract the plunger carefully after measurement and store the gauge clean, dry and protected from damage.
Frequently Asked Questions
What is the Mitutoyo 2507AB dial gauge used for?
The Mitutoyo 2507AB is designed for long-travel measurement applications including checking heights, steps, runout and machine alignment. Its 0.001 inch graduation and 0.5 inch range support comparative inspection over a relatively long stroke.
What are the graduation and measuring range of the 2507AB?
The 2507AB has a 0.001 inch graduation and a 0.5 inch measuring range.
What does ANSI/AGD mean on the Mitutoyo 2507AB?
ANSI/AGD refers to the American Gage Design standard used for dial indicators. The design uses standardized dimensions intended for compatibility with suitable stands, holders and accessories.
What is the benefit of the flat-back design?
The flat back provides a clean rear profile for applications where the gauge is secured by its stem in a stand, magnetic base or custom fixture.
What is the difference between the Mitutoyo 2507AB and 2507A?
Both models have a 0.001 inch graduation and a 0.5 inch measuring range. The 2507AB has a flat-back design, while the 2507A uses a lug-back configuration. The appropriate version depends on the mounting arrangement of the inspection setup.
Is the genuine Mitutoyo 2507AB available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. For current pricing, lead time and stock availability, call +965 9807 4888.
Request Pricing and Availability
For the genuine Mitutoyo 2507AB dial gauge in Kuwait, contact General Tech Services LLC for current pricing, stock availability and lead-time information.
Call +965 9807 4888 for pricing and stock availability.
