Mitutoyo 2776AB | Flat Back Dial Gauge | 1 in, 0.0005 in, ANSI/AGD
Part No. 2776AB | Range 1 inch | Graduation 0.0005 inch
Product Overview

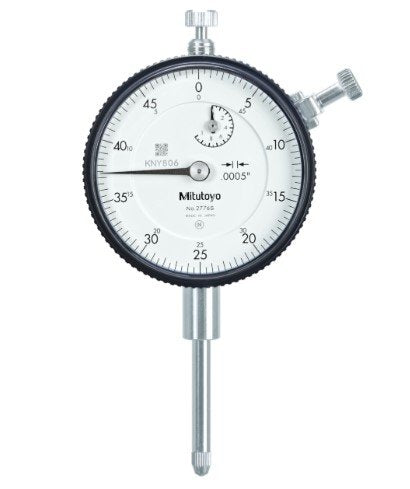

The Mitutoyo 2776AB is an ANSI/AGD-type Series 2 dial gauge with a flat back, 0.0005 inch graduation and 1 inch measuring range. It is designed for long-travel measurement applications including heights, steps, runout and machine alignment.
Made to American Gage Design dimensions, the 2776AB should be matched with compatible stands, fixtures and holders. Its 1 inch measuring range provides extended travel in a single setup, helping users inspect larger height differences and deviations without repeatedly resetting the gauge.
The flat back provides a clean, low-profile rear design for applications where the gauge is mounted by its stem in a magnetic base, comparator stand or custom fixture. Its mechanical movement is suited to routine measurement and day-to-day workshop applications.
General Tech Services LLC supplies genuine Mitutoyo instruments in Kuwait with support for product selection, pricing and availability.
For a lug back version, see the Mitutoyo 2776A.
Key Benefits
-
0.0005 inch graduation for clear and practical readings
-
1 inch measuring range for long-travel inspection
-
ANSI/AGD-type design for compatible inspection setups
-
Flat back for a clean rear profile during stem mounting
-
Mechanical movement for routine workshop inspection
-
Genuine Mitutoyo product supplied locally in Kuwait
Call +965 9807 4888 for pricing and stock availability.
Who This Product Is Best For
-
Inspectors measuring heights, steps and runout over a longer stroke
-
Toolrooms and machine shops performing workpiece and fixture checks
-
Maintenance teams replacing an existing ANSI/AGD flat back dial gauge
-
Machine alignment and setup applications requiring extended measurement travel
-
Calibration and inspection teams standardizing equipment on Mitutoyo
How to Use It
-
Mount the gauge securely by its stem in a suitable stand, magnetic base or fixture, keeping the plunger square to the measurement surface.
-
Apply a small amount of pre-load to the plunger and set the dial to zero against a suitable reference or master.
-
Move the workpiece or gauge across the feature being inspected and observe the measurement on the dial.
-
Record the deviation or measurement indicated by the dial.
-
Retract the plunger carefully after use and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2776AB dial gauge used for?
The Mitutoyo 2776AB is designed for long-travel measurement of heights, steps, runout and machine alignment. Its 0.0005 inch graduation and 1 inch range make it suitable for extended-travel inspection.
What are the graduation and range of the 2776AB?
The 2776AB has a 0.0005 inch graduation and a 1 inch measuring range.
What does ANSI/AGD mean on a dial gauge?
ANSI/AGD refers to American Gage Design dimensions used for dial indicators. The gauge should be matched with compatible stands, holders and accessories designed for this pattern.
What is the benefit of a flat back?
The flat back provides a clean, compact rear profile and is suitable for setups where the gauge is mounted by its stem in a stand, magnetic base or fixture.
Should I choose the flat back 2776AB or the lug back 2776A?
Both models are listed with a 0.0005 inch graduation and 1 inch measuring range. The 2776AB has a flat back, while the 2776A has a lug back. Select the version that matches your mounting arrangement.
Is the genuine Mitutoyo 2776AB available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Call +965 9807 4888 for current pricing, lead time and stock availability.
Request Pricing and Availability
For genuine Mitutoyo 2776AB supply in Kuwait, contact General Tech Services LLC for current pricing, availability and delivery information.
Call +965 9807 4888 to request a quote.
