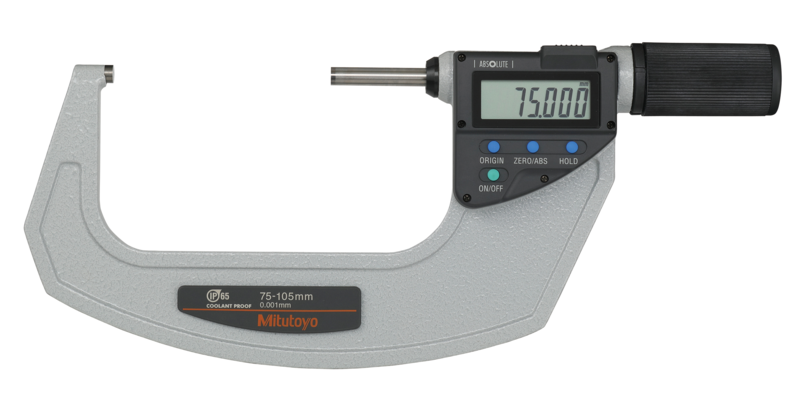

Mitutoyo 293-669-20 Digital Absolute Micrometer QuickMike 75-105mm
The Mitutoyo 293-669-20 is an IP65 ABSOLUTE Digimatic Quickmike micrometer designed for fast, precise measurement across a 75–105 mm range. It features a non-rotating spindle, 10 mm feed per thimble rotation, and a 30 mm measuring range, allowing significantly faster operation than conventional micrometers.
Genuine Mitutoyo stock · Free UAE-wide shipping
Part Number: 293-669-20
Request a quote in under a minute — call +971 6 5436933.
Product Overview
The Mitutoyo 293-669-20 Quickmike is a metric ABSOLUTE Digimatic micrometer from Mitutoyo's Quickmike Series 293, designed for machine shops, inspection teams, and production environments where fast and repeatable dimensional measurement is important.
Its 75–105 mm measuring range and 30 mm measurement span allow users to measure a wider range of component sizes without changing instruments as frequently as with conventional micrometers. The Quickmike mechanism provides 10 mm of spindle feed per thimble rotation, making operation approximately 20 times faster than a conventional micrometer.
The micrometer uses a non-rotating Ø6.35 mm spindle, which helps reduce torsion on softer workpieces during measurement. Its redesigned ratchet friction thimble provides a constant measuring force of 5–12 N and supports convenient one-handed operation.
The ABSOLUTE linear scale retains the origin throughout the battery life, eliminating the need to reset the zero position every time the instrument is switched on. The design also places no speed limit on spindle movement, supporting rapid measurement workflows.
For machining environments, the IP65 coolant-proof construction provides protection against splashing coolant. The large 10 mm-high LCD provides clear measurement readings and includes useful functions such as HOLD, MIN hold, function lock, and a low-voltage alarm.
The 293-669-20 has a resolution of 0.001 mm and an accuracy of ±3 µm, excluding the quantizing error of ±1 count. Carbide-tipped measuring surfaces with a micro-lap finish support consistent contact with the workpiece.
The micrometer uses one SR44 battery, providing approximately five years of battery life under normal use. It also supports SPC data output for integration into digital inspection and quality-control workflows.
Key Benefits
- 75–105 mm metric measuring range
- 30 mm measuring range for fewer instrument changes
- 10 mm spindle feed per revolution for approximately 20× faster operation
- ABSOLUTE linear scale eliminates repeated zero setting
- Non-rotating spindle helps reduce torsion on softer parts
- Constant-force ratchet provides 5–12 N measuring force
- IP65 coolant-proof construction for machining environments
- Large 10 mm-high LCD for easy reading
- HOLD, MIN hold, function lock, and low-voltage alarm functions
- Approximately 5-year battery life
- SPC data output for inspection and quality-control workflows
- Genuine Mitutoyo stock with free UAE-wide shipping
For the 50–80 mm size in the same Quickmike series, the 293-668-20 is the corresponding model.
Who This Product Is Best For
The Mitutoyo 293-669-20 is suited for:
- Machine shops measuring components across different sizes
- Shop-floor quality-control teams working around cutting fluid, coolant, oil, and dust
- Production inspection teams requiring fast dimensional checks
- Quality engineers using SPC data collection
- Users who need faster operation than a conventional micrometer provides
How to Specify & Use
- Switch on the 293-669-20. The ABSOLUTE scale retains its origin, so repeated origin setting is not required.
- Before critical measurements, verify the micrometer against the supplied setting standard or appropriate reference.
- Position the measuring faces on the workpiece and use the ratchet friction thimble to apply the correct constant measuring force.
- Read the measurement from the LCD and use HOLD or MIN hold when required.
- Use the SPC data output when measurement results need to be transferred to an inspection or quality-control system.
Frequently Asked Questions
What measuring range does the Mitutoyo 293-669-20 cover?
The 293-669-20 measures from 75 to 105 mm and provides a 30 mm measuring range.
How fast is the Quickmike mechanism?
The spindle feeds 10 mm per thimble rotation, making the Quickmike mechanism approximately 20 times faster than conventional micrometers.
Does the 293-669-20 require zero setting every time it is switched on?
No. The ABSOLUTE linear scale retains the origin throughout the life of the battery, so repeated zero setting is not required.
What is the accuracy of the 293-669-20?
The specified accuracy is ±3 µm, excluding the quantizing error of ±1 count.
Can the micrometer be used around coolant?
Yes. The 293-669-20 has IP65 coolant-proof protection, making it suitable for machining environments where splashing coolant is present.
What is the spindle specification?
It uses a Ø6.35 mm non-rotating spindle with 10 mm feed per revolution.
What measuring force does it use?
The constant-force ratchet provides a measuring force of 5–12 N.
Does it support SPC data output?
Yes. The 293-669-20 provides SPC data output for compatible inspection and data-collection workflows.
What is included with the micrometer?
The 293-669-20 is supplied with a box, one SR44 battery, and a setting standard.
What is the battery life?
The supplied SR44 battery provides approximately five years of operation under normal use.
Is genuine Mitutoyo stock available with UAE shipping?
Yes. Genuine Mitutoyo stock with free UAE-wide shipping is available. Call +971 6 5436933 for current pricing and availability.
