Mitutoyo 2971AB | One-Revolution Dial Indicator | 0.5 mm Range, 0.01 mm Graduation, Flat Back
Part No. 2971AB | Range 0.5 mm | Graduation 0.01 mm
Product Overview

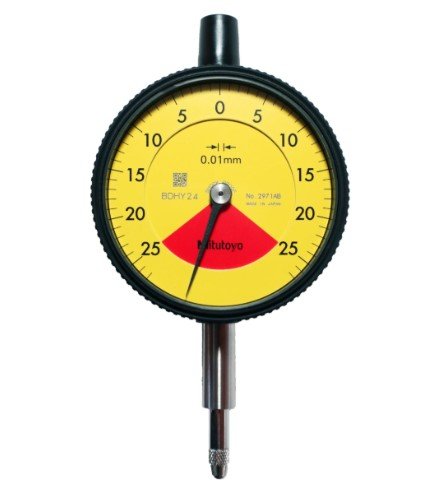

The Mitutoyo 2971AB is an ISO-type Series 2 dial gauge with a flat back design, one-revolution dial, 0.01 mm graduation, and 0.5 mm measuring range. It is designed for routine comparative checks, runout inspection, and setup work on the shop floor.
The gauge follows ISO-type design dimensions, so existing stands and holders should be checked for compatibility before installation. With 0.01 mm graduation over 0.5 mm of travel, it provides practical resolution for inspection applications where a compact measuring range is sufficient.
The flat back provides a clean, low-profile rear profile for applications where the gauge is mounted by its stem in a magnetic base, comparator stand, or custom fixture. Its one-revolution dial displays the full 0.5 mm range within a single pointer revolution, simplifying readings during repetitive inspection work. The mechanical movement is suited to regular day-to-day workshop use.
For a different measuring range, the Mitutoyo 2972TB is listed with a 0.01 mm graduation and 1 mm range.
Key Benefits
-
0.01 mm graduation for clear, practical readings
-
0.5 mm measuring range for routine comparative inspection and setup
-
ISO-type design for applications using compatible ISO-pattern stands and holders
-
Flat back for a clean rear profile when mounting by the stem
-
One-revolution dial displays the complete range in a single turn
-
Mechanical movement for regular workshop use
-
Suitable for comparative checks, runout inspection, and setup applications
Who This Product Is Best For
-
Machinists and inspectors performing routine comparative checks and setup work
-
Toolrooms and machine shops checking workpieces, fixtures, and machine alignment
-
Maintenance teams replacing an existing ISO-type flat back dial gauge
-
Buyers standardizing inspection equipment with genuine Mitutoyo instruments
How to Use It
-
Mount the gauge securely by its stem in a rigid stand, magnetic base, or suitable fixture, keeping the plunger aligned with the surface being measured.
-
Pre-load the plunger slightly and set the dial to zero against a reference surface or master.
-
Move the workpiece or gauge across the feature and read the deviation directly from the dial.
-
Retract the plunger gently after measurement and store the gauge clean, dry, and protected.
Frequently Asked Questions
What is the Mitutoyo 2971AB dial gauge used for?
The Mitutoyo 2971AB is intended for routine comparative checks, runout inspection, and setup work. Its 0.01 mm graduation and 0.5 mm range are suited to general shop-floor inspection tasks.
What are the graduation and range of the 2971AB?
The Mitutoyo 2971AB has a 0.01 mm graduation and a 0.5 mm measuring range.
What does ISO type mean on this dial gauge?
The 2971AB is listed as an ISO-type dial gauge rather than an ANSI/AGD model. Check that the intended stands and holders are compatible with this design pattern before installation.
What is the benefit of a flat back?
The flat back provides a clean, low-profile rear design and is suitable for applications where the gauge is mounted by its stem in a stand, magnetic base, or fixture.
What does a one-revolution dial mean?
The pointer covers the gauge's full 0.5 mm range in a single revolution, allowing the complete measuring range to be read without counting multiple pointer revolutions.
Which should I choose: the 2971AB or the 2972TB?
The models have the same 0.01 mm graduation but different measuring ranges. The 2971AB has a 0.5 mm range, while the 2972TB is listed with a 1 mm range. Select the configuration that matches your required measuring travel.
Is the genuine Mitutoyo 2971AB available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Contact +965 9807 4888 for current pricing, lead time, and stock availability.
For pricing and current availability of the Mitutoyo 2971AB, contact General Tech Services LLC, Genuine Mitutoyo Supplier, Kuwait, at +965 9807 4888.
