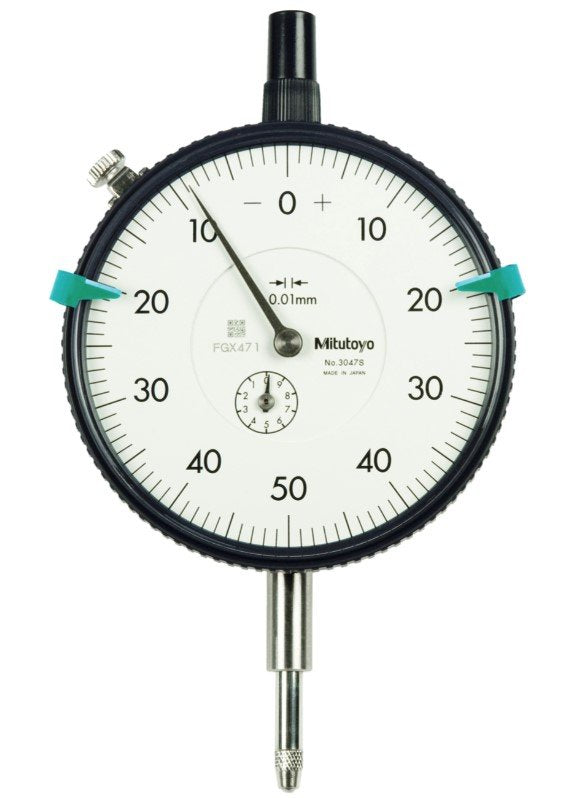

Mitutoyo 3047SB | Dial Indicator | Flat Back | Series 3 | Graduation 0.01 mm | Range 10 mm
The Mitutoyo 3047SB is a precision dial indicator designed for high-accuracy measurements in industrial and workshop settings. It features a flat back, making it easy to mount on various fixtures for stable use. Belonging to Series 3, it provides 0.01 mm graduations and a 10 mm range, offering clear and reliable readings. The dial face is easy to read, ensuring efficient measurement processes. Its durable build ensures consistent performance in rigorous environments.

Free UAE shipping available
- Specifications
- Features
- Downloads
Contact point | Carbide tipped, thread: M 2.5 x 0.45 mm |
Digital/Analog | Analog |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Mass (main unit) | 237 g |
Measuring range | 15 µm |
Range | 10 mm |
Repeatability | 3 µm |
Series | 3 |
Stem Dia | 8 mm |
Type | Dial Indicator |
- Type: Dial Indicator with Flat Back for stable and secure fixture mounting.
- Series 3: Larger dial face offers enhanced visibility for precise readings.
- Graduation: 0.01 mm, allowing for fine measurement resolution.
- Measuring Range: 10 mm, suitable for standard precision inspection tasks.
- Shockproof Construction: Internal mechanism is protected against sudden impacts.
- Durable Design: Built for long-term use in industrial and metrology environments.
