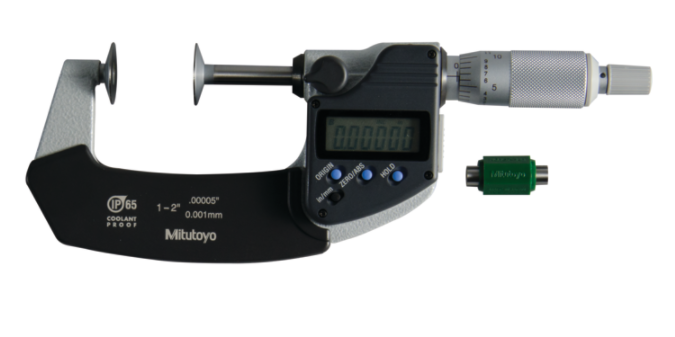

Mitutoyo 323-351-30 | Digital Disc Micrometer IP65 | 1–2 in, 20 mm Disc
Part Number : 323-351-30
Covering 1–2 in, the Mitutoyo 323-351-30 uses 20 mm measuring discs and carries IP65 protection. Typical tasks are gear root tangent length on spur and helical gears and recessed details out of reach of a plain anvil.
- 1–2 in range, ±0.0002 in accuracy
- Reads in 0.00005 in steps, inch or metric
- Flatness 0.00004 in and parallelism 0.0003 in on the discs
- Data output, ZERO/ABS and a lockable ø6.35 mm spindle
- Main unit mass 355 g
For pricing, please contact our experts.
