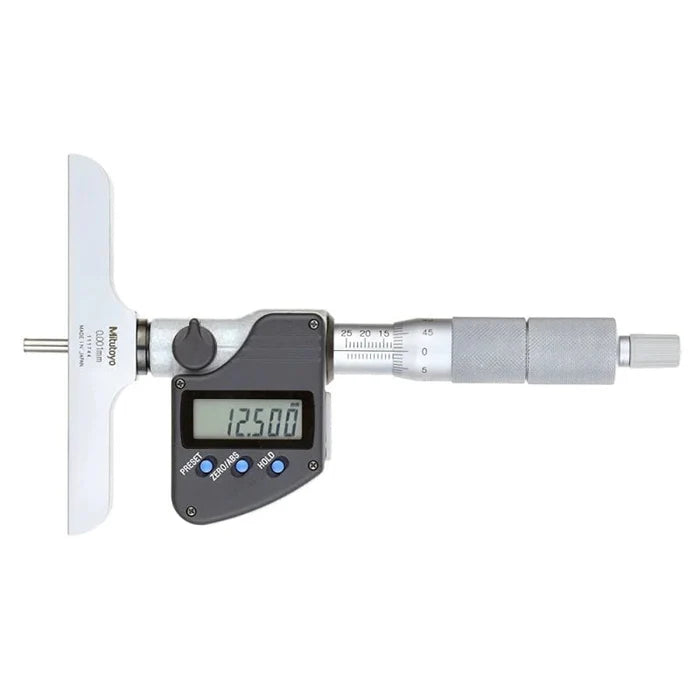

Mitutoyo 329-250-30 : Digital Depth Micrometer 0-150mm
Part No. 329-250-30 | Mitutoyo Series 329
Product Description
The Mitutoyo 329-250-30 is a Digimatic depth micrometer for measuring holes, slots, steps and recesses across a 0–150 mm range. Its digital LCD provides 0.001 mm resolution, while the micrometer head has ±3 µm accuracy according to Mitutoyo specification.
Six interchangeable ø4 mm rods cover the measuring range in 25 mm increments. The rods can be adjusted for calibration and wear compensation and are secured with a rod clamp during measurement. A ratchet stop helps provide consistent measuring force for repeatable readings.
The hardened, ground and micro-lapped 101.6 × 16 mm base provides a stable reference surface, with 2 µm base flatness. Digimatic functions include origin setting, zero setting, data hold, function lock and presets for convenient inspection workflows.
For inspection records and digital data collection, the SPC data output can send measurements to a compatible PC or data logger using the appropriate Mitutoyo SPC cable.
For a longer measuring range, see the Mitutoyo 329-350-30 with a 0–6" range. For a mechanical depth micrometer, see the Mitutoyo 129-116.
Key Benefits
Direct digital reading: LCD display provides 0.001 mm resolution for convenient depth measurement.
Wide measuring range: six interchangeable rods cover depths from 0 to 150 mm.
Flexible rod system: rods are supplied in 25 mm increments and can be adjusted for calibration and wear compensation.
Data-ready inspection: SPC output supports transfer of measurement data to a PC or compatible data logger.
Stable reference: hardened, ground and lapped base provides a controlled surface for depth measurements.
Consistent measurement force: ratchet stop helps improve repeatability between readings.
Convenient digital functions: origin, zero, hold, function lock and preset functions support routine inspection.
Need a price or delivery time for the 329-250-30? Call +965 9807 4888 for a fast quote.
Who This Product Is Best For
The Mitutoyo 329-250-30 is suited to quality-control laboratories, CNC machine shops, machining operations, mould and die makers, production inspection teams and metrology departments in Kuwait.
It is particularly useful where operators measure different depth ranges regularly and need digital readings that can be recorded or transferred into electronic inspection documentation.
How to Use
-
Select the interchangeable rod appropriate for the required depth range and secure it with the rod clamp.
-
Set the origin on a suitable reference surface or use the appropriate preset for the fitted rod.
-
Place the base squarely across the opening, slot or feature being measured.
-
Turn the ratchet stop until the measuring contact is established consistently.
-
Read the depth directly from the LCD.
-
Use the hold function when required, or transfer the measurement through the SPC output for electronic inspection records.
Frequently Asked Questions
What is the Mitutoyo 329-250-30 used for?
The 329-250-30 is used to measure the depth of holes, slots, steps, recesses and similar features across a 0–150 mm range.
What is the resolution of the Mitutoyo 329-250-30?
The Digimatic display provides 0.001 mm resolution.
How accurate is the Mitutoyo 329-250-30?
Mitutoyo specifies ±3 µm accuracy for the micrometer head.
How many interchangeable rods are included?
The 329-250-30 uses six interchangeable ø4 mm rods covering the 0–150 mm range in 25 mm increments.
Can the Mitutoyo 329-250-30 send measurements to a computer?
Yes. The instrument has SPC data output for connection to a compatible PC or data logger using the appropriate Mitutoyo SPC cable.
Does the 329-250-30 have digital measurement functions?
Yes. Its Digimatic system includes origin setting, zero setting, data hold, function lock and preset functions.
Is there a longer-range Series 329 depth micrometer?
Yes. The Mitutoyo 329-350-30 provides a longer 0–6" measuring range. Choose the model according to the depth range and measurement system required.
