Mitutoyo 3428SB-19 | Dial Indicator | Flat Back | AGD/ANSI | Series 3 | Graduation 0.001 inch | Range 4 inch - generaltechuae

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 3428SB-19

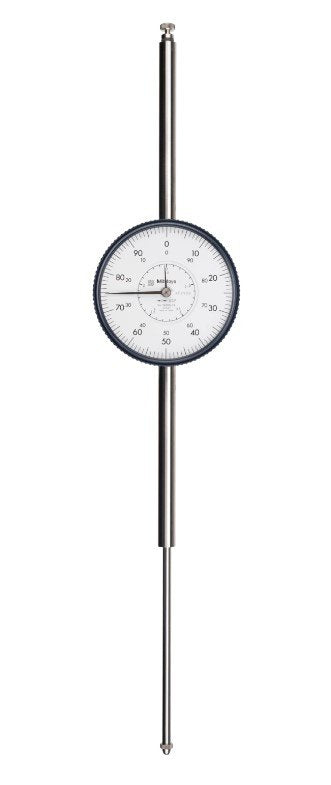

Mitutoyo 3428SB-19 Dial Indicator offers precision measurement for industrial applications.Features a Flat Back design suitable for secure fixture mounting. Built to AGD/ANSI standards for compatibility and quality assurance. Part of Series 3 with a Graduation of 0.001 inch for fine resolution. Provides a Range of 4 inch, ideal for extended measurement needs.

Availability: Sold out

Free Kuwait shipping available

Specifications
Features
Downloads

Contact point	Carbide tipped, thread: 4-48UNF
Dial Reading	+/-0-100
Digital/Analog	Analog
Graduation	0.001 inch
Hysteresis	0.00033 inch
Inch-Metric	Metric
Mass (main unit)	351 g
Measuring Force	0.4 - 3.2 N
Range	4 Inch
Repeatability	+/-0.0002 inch
Series	3
Stem Dia	9.52 mm Or 0.375 inch
Type	Dial Indicator

Model: 3428SB-19 from Mitutoyo’s Series 3
Measuring Range: 4 inches – suitable for long travel measurements
Graduation: 0.001 inch – for precise and fine resolution readings
Back Type: Flat Back – ideal for mounting in holders or fixtures
Compliance: Meets AGD/ANSI standards for dial indicator dimensions and quality
Dial Face: Easy-to-read with clear, high-contrast markings
Durability: Rugged construction for industrial and shop floor environments
Application: Perfect for alignment, runout, and depth measurements

DOWNLOAD CATALOG
