Mitutoyo 395-352 | Digimatic Tube Micrometer | 0.001 mm resolution, spherical anvil
The Mitutoyo 395-352 is a Series 395 Digimatic tube micrometer with 0.001 mm resolution, using a spherical anvil (SR 4 mm) against a flat spindle for tube work. Carbide-tipped, micro-lapped faces and an LCD with 7.5 mm characters are specified.
- Digital step 0.00005 in or 0.001 mm
- Flatness 0.000012 in
- Measuring force 5-10 N; spindle pitch 0.5 mm, on the 395-352
- One SR-44 battery, approx. 2.4 years
- Weight 330 g
- Specifications
- Features
- Downloads
| Part Number | 395-352 |
| Brand | Mitutoyo |
| Series | 395 |
| Digital Step | 0.00005 in / 0.001 mm |
| Anvil/Spindle | Type A: spherical anvil SR 4 mm, flat spindle |
| Flatness | 0.000012 in |
| Measuring Force | 5-10 N |
| Spindle Pitch | 0.5 mm |
| Display | LCD, 7.5 mm characters |
| Power Supply | One SR-44 battery |
| Battery Life | Approx. 2.4 years |
| Weight | 330 g |
- Resolution: 0.001mm for highly precise measurements.
- Accuracy: ± 0.002mm for reliable and consistent readings.
- Range: 25 to 50mm, ideal for measuring tubes and pipes.
- Digital Display: Easy-to-read digital readout for convenience.
- Series 395: Designed for high-precision measurements in industrial applications.
- Ergonomic Design: Provides comfortable handling during use, even in long measurement tasks.
Related Products

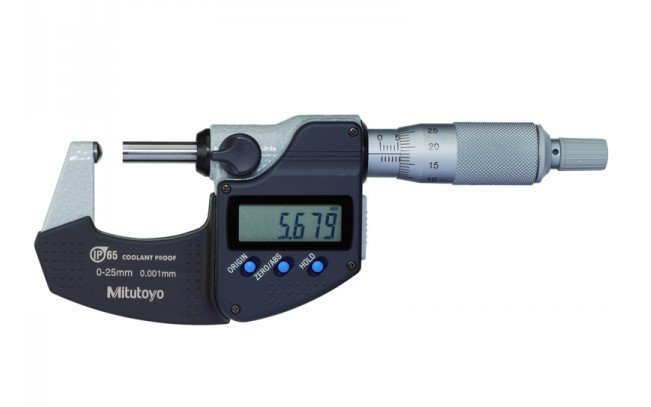

Mitutoyo 395-351 | Digimatic Tube Micrometer | 0-1 in, spherical anvil, 0.00005 in
Mitutoyo 395-351 | Digimatic Tube Micrometer | 0-1 in, spherical anvil, 0.00005 in

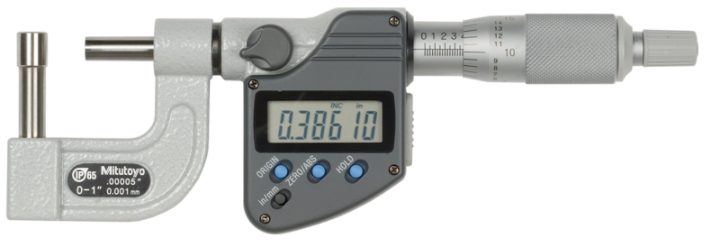

Mitutoyo 395-364-30 | Digital Tube Micrometer | Spherical anvil, flat spindle, IP65
Mitutoyo 395-364-30 | Digital Tube Micrometer | Spherical anvil, flat spindle, IP65

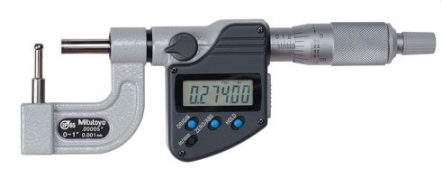

Mitutoyo 395-363-30 | Digital Tube Micrometer | Spherical anvil, flat spindle, IP65
Mitutoyo 395-363-30 | Digital Tube Micrometer | Spherical anvil, flat spindle, IP65

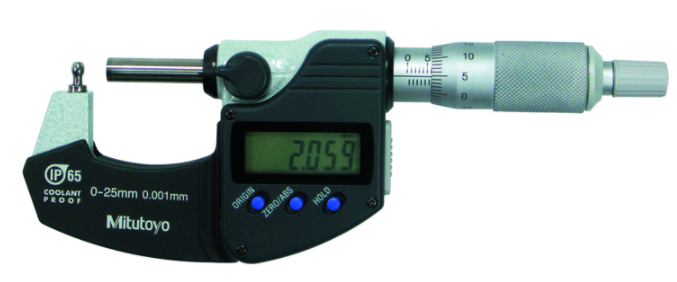

Mitutoyo 395-362-30 | Digital Tube Micrometer | 0-1 in, spherical anvil, flat spindle, IP65
