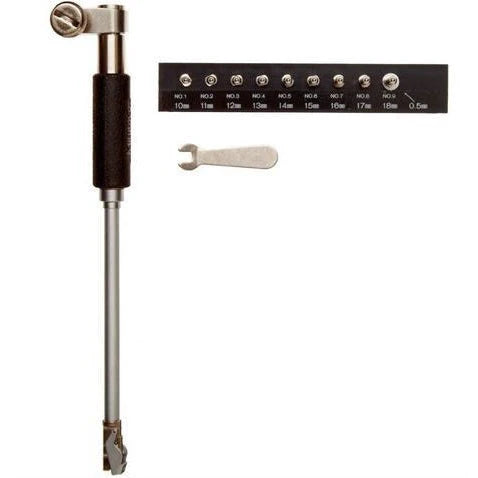

Mitutoyo 511-201 | Small Hole Bore Gauge | Range 10 to 18.5 mm, No Dial Gauge
Covering 10 to 18.5 mm, the Mitutoyo 511-201 is a small hole bore gauge supplied without a dial gauge, so you can fit the indicator of your choice. Interchangeable anvils allow close-tolerance ID measurement across the range. Full 511-201 specifications are listed in the table below.
- Range: 10 to 18.5 mm
- 9 anvils and 1 spacer for the 511-201
- 8 mm stem diameter for the indicator
- Dial gauge not included
- Specifications
| Part Number | 511-201 |
| Brand | Mitutoyo |
| Type | Small Hole Bore Gauge |
| Range | 10 to 18.5 mm (0.394 to 0.728 in) |
| Anvils | 9 |
| Stem Diameter | 8 mm (0.315 in) |
| Spacers | 1 |
| Indicator | Not included |
