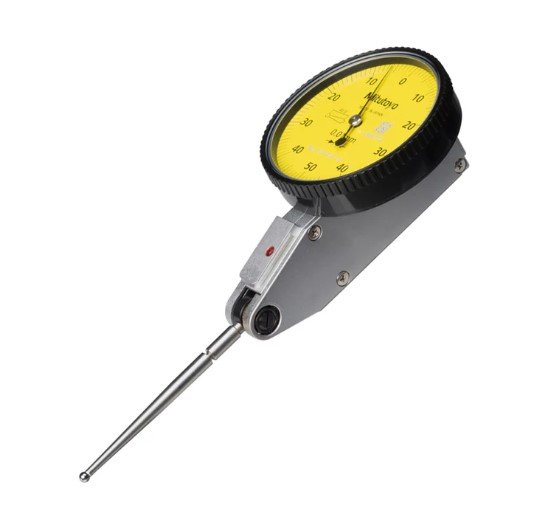

Mitutoyo 513-415-10T | Dial Test Indicator | Graduation 0.01 mm | Accuracy 10µm | Range 1 mm
The Mitutoyo 513-415-10T Dial Test Indicator is a high-precision tool designed for measuring small displacements in mechanical parts. It features a graduation of 0.01 mm and offers an accuracy of 10 µm, ensuring highly detailed and accurate measurements. The indicator has a range of 1 mm, ideal for checking small variations in alignment and runout. Its compact and durable design makes it perfect for use in quality control and industrial settings. The Mitutoyo 513-415-10T provides reliable performance in precise measurement applications. This indicator is essential for ensuring tight tolerances in manufacturing and engineering tasks.
- Specifications
- Features
- Downloads
| Bearing | Jeweled |
| Dial Reading | 0-50-0 |
| Dial Size | 40mm |
| Display | Analog |
| Graduation | 0.01mm |
| Hysteresis | 4mm |
| Measuring Force | Upto 0.2 N |
| Model Number | 513-415-10T |
| Range | 1mm |
| Repeatability | 3mm |
| Stylus tip radius | 2mm |
| Thread type | M 1.7 x 0.35 |
| Type | Dial Test Indicator |
| Weight | 45g |
- 0.01 mm Graduation: Offers graduation of 0.01 mm, providing fine resolution for precise measurements.
- High Accuracy: Features accuracy of 10 µm, ensuring minimal measurement error and reliable results.
- 1 mm Range: Has a range of 1 mm, ideal for measuring small displacements and variations in parts.
- Durable Design: Built with high-quality materials to ensure long-lasting performance in industrial environments.
- Compact and Easy to Use: Designed for easy operation, perfect for checking alignment, runout, and other small-scale variations.
- Versatile Tool: Essential for use in quality control, machining, and precision measurement applications requiring tight tolerances.
