Name: Mitutoyo 539-140-30 | Linear Scale AT103 | Cable Length 7 m | Effective Length 2600 mm | Mass 7.5 kg
Brand: Mitutoyo
SKU: 539-140-30
Availability: OutOfStock

Part Number : 539-140-30

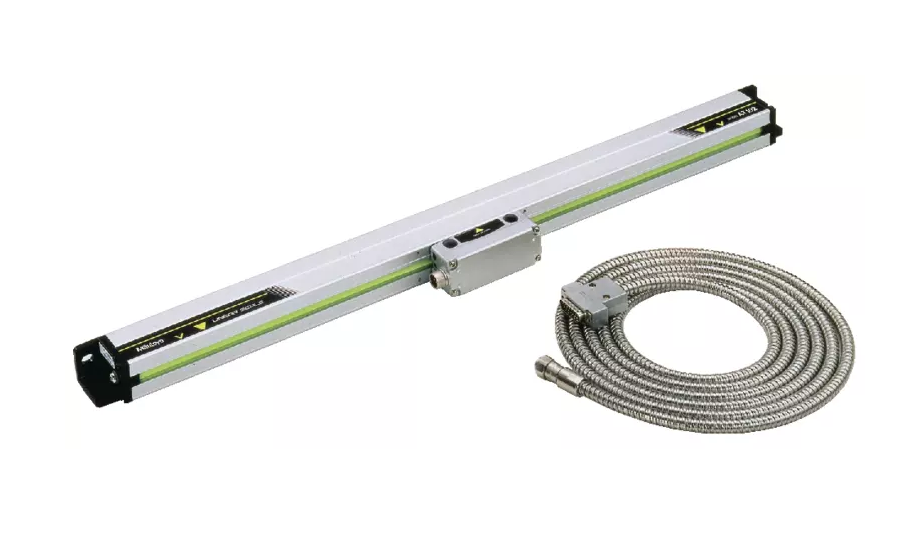

The Mitutoyo 539-140-30 is a high-precision linear scale designed for accurate measurement applications. It offers an effective measuring length of 2600 mm, making it suitable for medium to large-scale setups. The scale features a 7-meter armored signal cable, ensuring durability and flexibility in various environments. With a mass of 7.5 kg, it provides a solid and stable build for consistent performance. The scale operates with high accuracy and speed, delivering reliable measurements for demanding applications. It is compatible with Mitutoyo's digital readout systems, ensuring seamless integration into existing setups.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm, 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 7 m
MAX. SPEED	120 m/min.
Model Number	AT103-2600
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	IP53
Scale	Reference Points: Every 50 mm
Type	Linear Scale
Weight	7.5 kg

High Accuracy: (5 + 5L/1000) µm precision for lengths up to 3000 mm.
Effective Length: 2600 mm, suitable for larger measurement tasks.
Durable Design: IP53-rated protection for industrial environments.
7 m Armored Cable: Flexible, dual-end connection for easy installation.
Fast Operation: Supports measuring speeds up to 120 m/min.
Signal Output: Dual 90° phase-shifted signals, compatible with Mitutoyo DROs.
