Name: Mitutoyo 539-146-30 | Linear Scale AT103 | Cable Length 10 m | Effective Length 4000 mm | Mass 12.6 kg
Brand: Mitutoyo
SKU: 539-146-30
Availability: OutOfStock

Part Number : 539-146-30

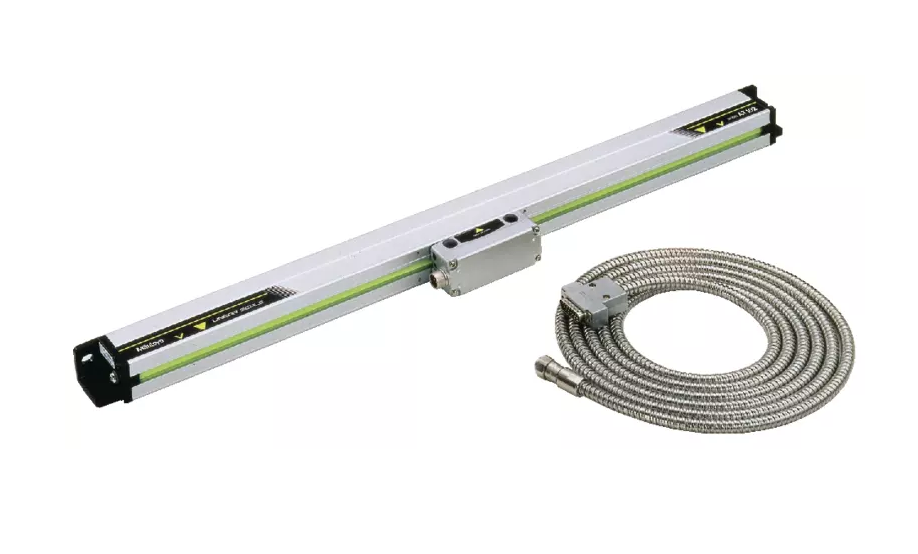

The Mitutoyo 539-146-30 Linear Scale AT103 is a high-precision measuring solution built for large-scale industrial applications. It features a 4000 mm effective measuring length and a durable 10-meter armored cable for extended reach and robust connectivity. With a solid mass of 12.6 kg, the scale provides excellent stability during operation. It delivers precise measurements even at high speeds, ensuring efficiency and accuracy in demanding environments. The IP53-rated construction offers protection against dust and light moisture. Fully compatible with Mitutoyo DRO systems, it integrates easily into a wide range of setups.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm, 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 10 m
MAX. SPEED	50 m/min.
Model Number	AT103-4000
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	IP53
Scale	Every 50 mm
Type	Linear Scale
Weight	12.6 kg

Effective Length: 4000 mm, ideal for large equipment and extended-range applications.
High Accuracy: Delivers precision of (5 + 8L/1000) µm for long-scale measurements.
Durable Design: IP53-rated protection with a robust 10 m armored signal cable.
Stable Build: Weighs 12.6 kg, ensuring rigidity and stability during use.
Flexible Setup: Cable connection from either side of the detector head.
Signal Output: Dual 90° phase-shifted sinusoidal signals, compatible with Mitutoyo KA and KLD DROs.
