Mitutoyo 539-205-30 | Linear Scale AT113 | Model AT113-300 | Mass 1.027 kg

Name: Mitutoyo 539-205-30 | Linear Scale AT113 | Model AT113-300 | Mass 1.027 kg
Brand: Mitutoyo
SKU: 539-205-30
Availability: OutOfStock

Part Number : 539-205-30

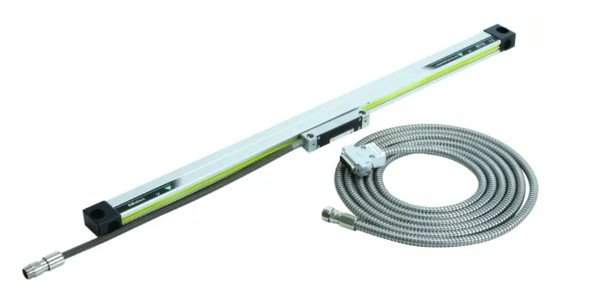

The Mitutoyo 539-205-30 Linear Scale (Model AT113-300) is a precision measuring instrument designed for accurate linear displacement detection over a 300 mm range. It features a slim, spar-type design with dimensions of 22×35 mm, making it suitable for installations in limited spaces. The scale offers high accuracy with a standard tolerance of (5 + 5L/1000) µm, where L is the effective measuring length in mm. It operates within an environmental protection rating of IP53, ensuring resistance against dust and water ingress. The scale is compatible with various Mitutoyo Digital Readout (DRO) systems, enhancing versatility in different setups.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	Standard type (5+5L/1000) µm L = Effective range (mm)
Mass (main unit)	1.027 kg
Model Number	AT113-300
Type	Linear Scale

High Accuracy: Standard accuracy of (5 + 5L/1000) µm, where L is the effective measuring length in mm.
Compact Design: Slim spar type with dimensions of 22×35 mm, ideal for limited installation spaces.
Durable Construction: Equipped with an armored stainless steel signal cable, ensuring protection against environmental factors.
Flexible Connectivity: Compatible with various Mitutoyo Digital Readout (DRO) systems, enhancing versatility in different setups.
Environmental Protection: Rated at IP53, offering resistance against dust and water ingress, suitable for shop-floor environments.
