Mitutoyo 539-803N | Linear Scale AT715-200 | Electromagnetic Induction System | Cable Length 3.5 m | Effective Length 200 mm | Mass 0.8 kg

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 539-803N

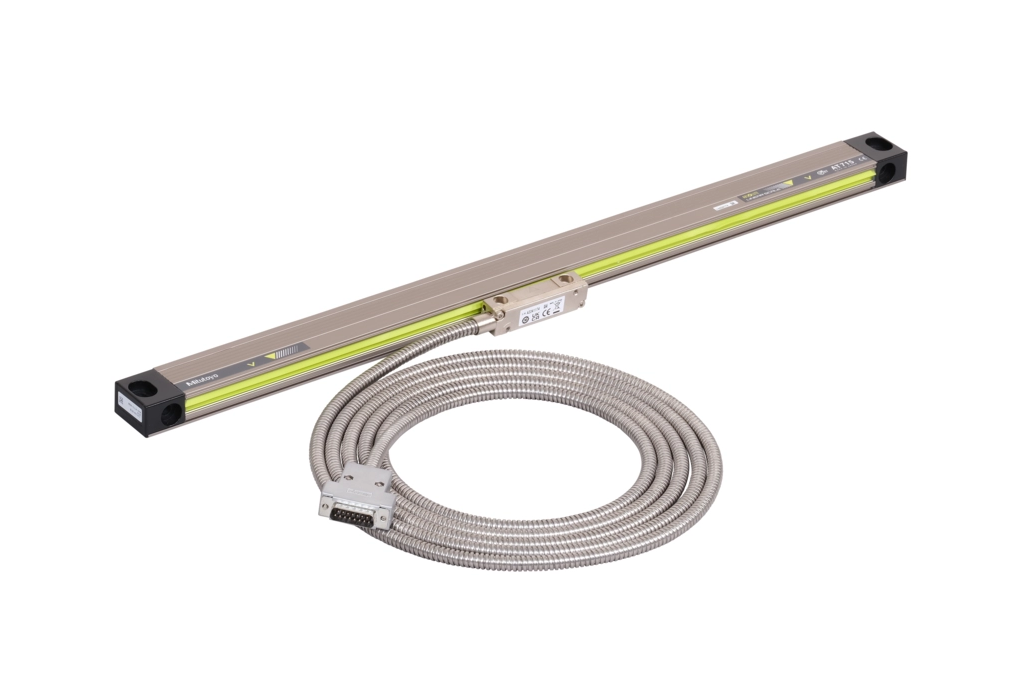

The Mitutoyo 539-803N Linear Scale AT715-200 uses an electromagnetic induction system for precise measurements. With an effective length of 200 mm, it is ideal for short-range, high-accuracy applications. The 3.5-meter cable allows for flexible installation in a variety of setups. Weighing just 0.8 kg, the scale offers both stability and portability. Its compact design ensures efficient space utilization while maintaining excellent performance. The scale seamlessly integrates with Mitutoyo DRO systems, providing reliable and consistent results.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm; 600 to 1800 mm +/-7 µm; 2000 to 3000 mm +/-10 µm
Cable length	: 3.5 m
MAX. SPEED	50 m/min
Measuring method	Electromagnetic induction system
Model Number	AT715-200
Resolution	0.001 / 0.005 (switchable via Counter)
Type	Linear Scale
Weight	0.8 kg

Effective Measuring Length: 200 mm, ideal for short-range precision measurements.
Electromagnetic Induction System: Ensures high accuracy and reliability in measurements.
Compact Design: Weighs just 0.8 kg for easy handling and installation.
Flexible Installation: 3.5-meter cable provides versatility for various setups.
Durable Performance: Designed for stable operation in diverse environments.
Signal Compatibility: Seamlessly integrates with Mitutoyo DRO systems for consistent results.

DOWNLOAD CATALOG
