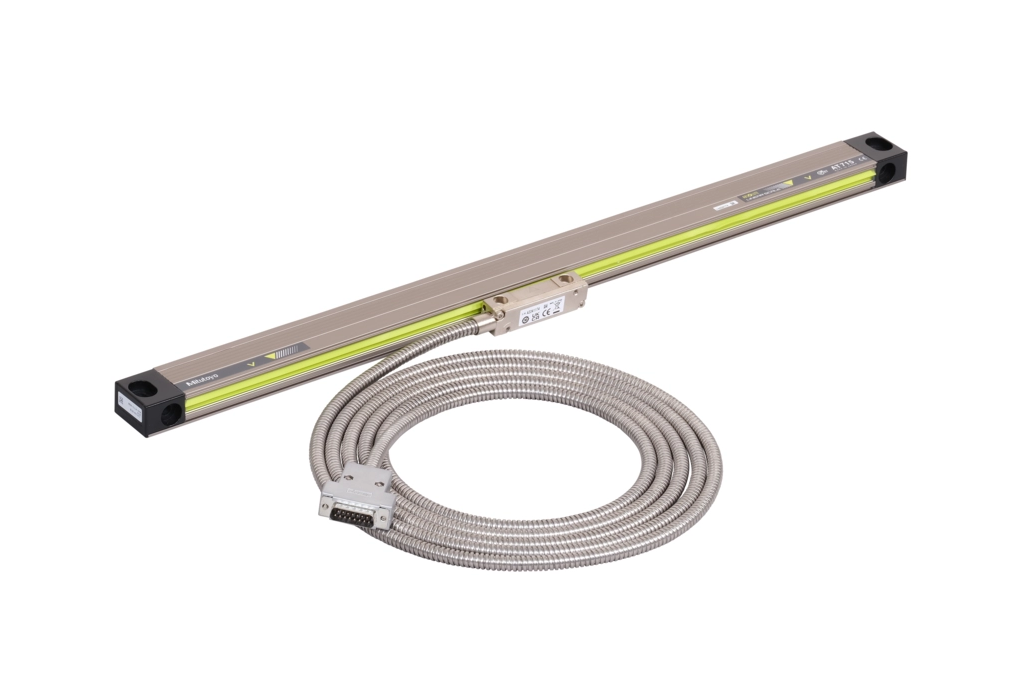

Mitutoyo 539-817N | Linear Scale AT715-1000 | Electromagnetic Induction System | Cable Length 5 m | Effective Length 1000 mm | Mass 1.65 kg

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 539-817N

The Mitutoyo 539-817N Linear Scale AT715-1000 is a high-precision measurement tool designed for extended-range applications in industrial settings. It operates with an electromagnetic induction system, ensuring stable, accurate measurements and excellent resistance to contaminants like dust, oil, and coolant. With an effective measuring length of 1000 mm, it is ideal for large-scale machinery and equipment. The scale features a 5-meter cable, offering flexibility in installation and setup. Weighing 1.65 kg, it provides a durable yet manageable solution. Built for demanding environments, this model ensures reliable, repeatable performance in precision measurement tasks.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm; 600 to 1800 mm +/-7 µm; 2000 to 3000 mm +/-10 µm
Cable length	: 5 m
MAX. SPEED	50 m/min
Measuring method	Electromagnetic induction system
Model Number	AT715-1000
Resolution	0.001 / 0.005 (switchable via Counter)
Type	Linear Scale
Weight	1.65 kg

Electromagnetic Induction System – Employs the ABSOLUTE® electromagnetic induction principle, offering high environmental protection with an IP67 rating.
No Reference Point Setup Required – Detects and outputs the absolute position, eliminating the need for reference point setup at each power-on.
High Environmental Resistance – Designed to operate in harsh environments, making it suitable for use in machine tools and precision instruments.
Flexible Installation – The scale unit has two mounting directions, allowing easy installation on machining tools with difficult mounting positions.
Compatibility – Compatible with KA series display units, ensuring seamless integration into existing systems.
High-Speed Response – Maximum response speed of 50 m/min, suitable for high-speed measurement applications.
