Part Number : 539-824R

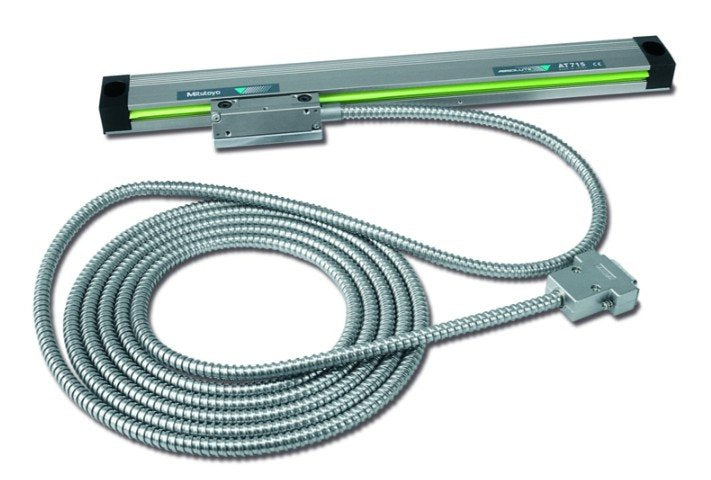

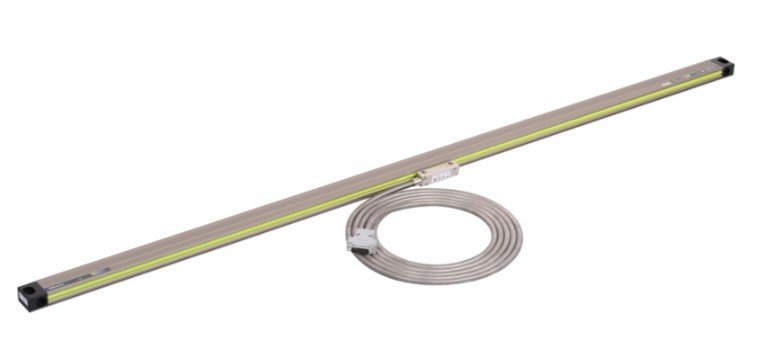

The Mitutoyo 539-824R Linear Scale (AT715) utilizes an electromagnetic induction system for high-precision, non-contact measurement. With an effective measuring length of 1700 mm, it is well-suited for long-range applications in industrial environments. The scale comes with a 5-meter cable, offering flexibility for easy installation on various machines. Weighing 2.35 kg, it is designed for robustness and durability in demanding conditions. This model is fully compatible with Mitutoyo KA series digital readout units, ensuring accurate and seamless data display.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm 600 to 1800 mm +/-7 µm 2000 to 3000 mm +/-10 µm
Cable length	: 5 m
Length	1700 mm
Mass (main unit)	2.35 kg
MAX. SPEED	Drive : 50 m Or min
Measuring method	Electromagnetic induction system
Model Number	ABS AT715-1700
Resolution	0.001 Or 0.005 (switchable via Counter)
Type	Linear Scale

Electromagnetic Induction System: Delivers accurate, non-contact measurements resistant to environmental contaminants like oil, dust, and coolant.
1700 mm Effective Measuring Length: Perfect for long-travel measurement needs in large machines or industrial applications.
5 m Cable Length: Provides flexibility for easy installation in diverse machine configurations.
Durable Construction: Weighs 2.35 kg, designed for ruggedness and reliability in industrial environments.
KA Series Compatibility: Works seamlessly with Mitutoyo KA series digital readout systems for precise data processing and display.
