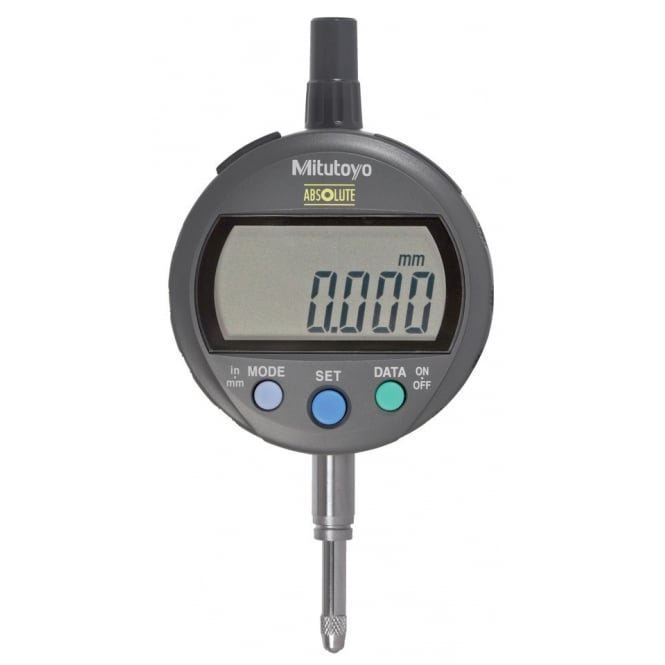

Mitutoyo 543-391B | Digital Indicator ID-C | 12.7 mm / 0.5 in, 0.001 mm

Name: Mitutoyo 543-391B | Digital Indicator ID-C | 12.7 mm / 0.5 in, 0.001 mm
Brand: Mitutoyo
SKU: 543-391B
Availability: OutOfStock

Part Number : 543-391B

Mitutoyo 543-391B is a Digital Indicator ID-C offering 12.7 mm / 0.5 in of travel and a finest step of 0.001 mm. It is rated at ±0.003 mm / 0.0001 in accuracy.

Size similar to a Series 2 dial indicator
Result calculated from spindle displacement using a single-term formula (Ax)
Tolerance judgement
SPC data output
Measuring force of 1.5 N or less
Stem diameter 8 mm

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	543-391B
Brand	Mitutoyo
Range	12.7 mm / 0.5 in
Digital Step / Resolution	0.001 mm / 0.00005 in
Accuracy (MPE)	±0.003 mm / 0.0001 in
Measuring Force	1.5 N or less
Stem Diameter	8 mm
Functions	Digimatic data output
Indicator Type	Plunger

Employing the ABSOLUTE Linear Encoder, the ID-CX indicator always displays the absolute position of the plunger from the origin at power-on.
• Thanks to the ABSOLUTE Linear Encoder, reliability has been increased due to elimination of over-speed errors.
• Tolerance-judging measurement is available by setting upper and lower limit values. The tolerance judgement result can be enlarged.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
