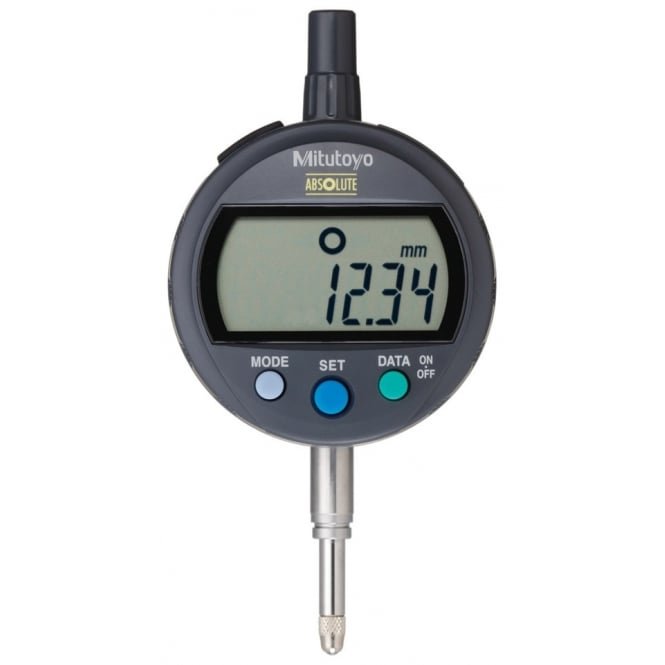

Mitutoyo 543-404B | Low Force Digital Indicator ID-C | 12.7 mm, 0.01 mm

Name: Mitutoyo 543-404B | Low Force Digital Indicator ID-C | 12.7 mm, 0.01 mm
Brand: Mitutoyo
SKU: 543-404B
Availability: OutOfStock

Part Number : 543-404B

Built around a 12.7 mm measuring range and 0.01 mm resolution, the Mitutoyo 543-404B is a Low Force Digital Indicator ID-C. The listed accuracy is ±0.02 mm.

Low measuring force for softer or delicate components
Result calculated from spindle displacement using a single-term formula (Ax)
Tolerance judgement
SPC data output
Spindle measuring force: 0.2-0.5 N
Mounts on a 8 mm stem

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	543-404B
Brand	Mitutoyo
Range	12.7 mm
Digital Step / Resolution	0.01 mm
Accuracy (MPE)	±0.02 mm
Measuring Force	0.2-0.5 N
Stem Diameter	8 mm
Functions	Digimatic data output
Indicator Type	Plunger

This is a multifunction indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-C offers you the following benefits:

The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
GO/±NG judgement is performed by setting the upper and lower tolerances.
You can make simple calculations by a user-definable factor using the formula Ax (‚x‘ is spindle displacement).
Large character height of 11mm provides good readability.
Display 330° rotatable.
A function lock protects the display against unauthorised use.
