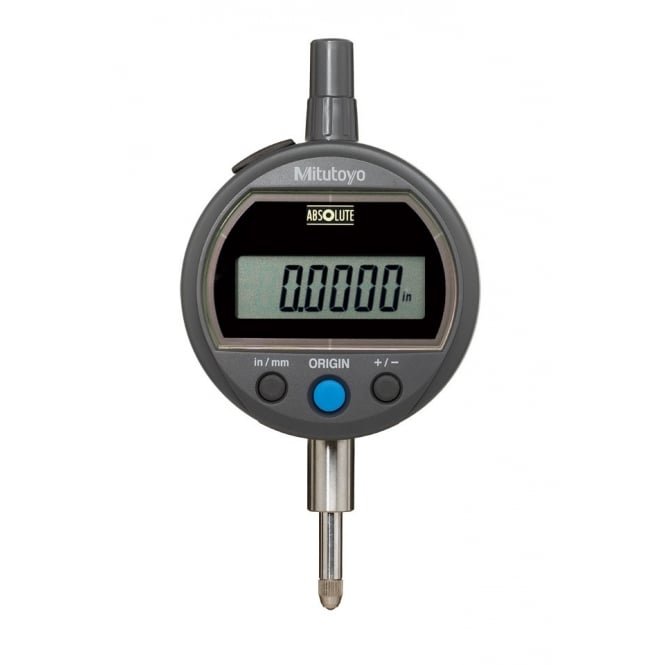

Mitutoyo 543-506B | Solar Digital Indicator ID-SS | 12.7 mm / 0.5 in, 0.01 mm, Flat Back
Mitutoyo 543-506B is a Solar Digital Indicator ID-SS offering 12.7 mm / 0.5 in of travel and a finest step of 0.01 mm, built with a flat back.
- Solar powered, no battery needed under normal lighting
- Power reserve for more than 3 hours below 40 lux when fully charged
- ABSOLUTE scale for error-free, high-speed measurement
- Digimatic data output
- Measuring force of 1.5 N or less
- Stem diameter 8 mm
- Specifications
- Features
- Downloads
| Part Number | 543-506B |
| Brand | Mitutoyo |
| Back | Flat back |
| Range | 12.7 mm / 0.5 in |
| Digital Step / Resolution | 0.01 mm / 0.0005 in |
| Measuring Force | 1.5 N or less |
| Stem Diameter | 8 mm |
| Functions | Digimatic data output |
| Indicator Type | Plunger |
Solar power supply. An environmentally friendly measuring instrument that does not require batteries, eliminating the hassle and cost of battery replacement. Can operate under minimum light conditions of 40 lux – lower than the level of warehouse lighting.
• Built-in recharger. The large-capacity built-in recharger allows you to use the indicator for long periods of time under light conditions below the minimum level.*
• User-friendly operation. All functions can be accessed by using the large buttons on the front of the indicator.
• Origin recorded even if display disappears. The indicator includes an ABSOLUTE sensor that allows the previously set origin to be stored even if the display disappears due to insufficient light, making it easy to resume measurement. This feature makes ID-SS ideal for long-time or multi-point measurement. ID-SS can be used in standard work environments.
