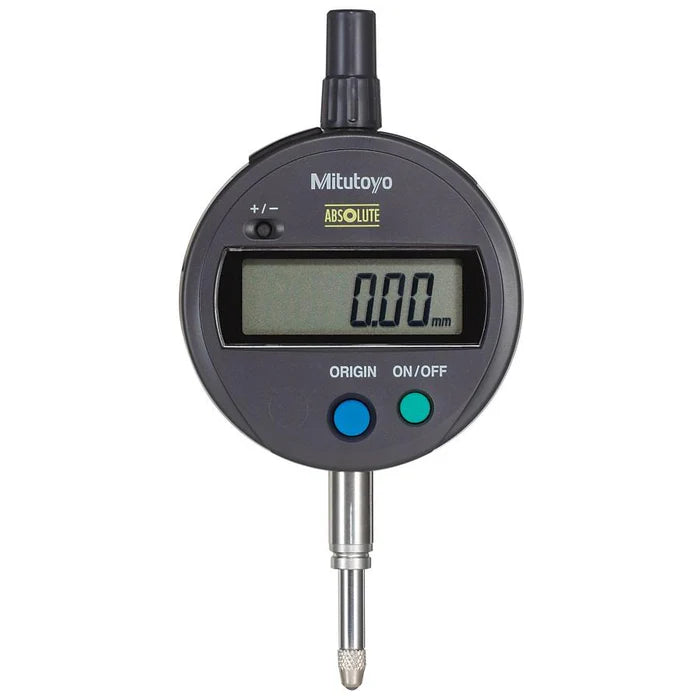

Mitutoyo 543-781: Digimatic Indicator

Part Number : 543-781

The Mitutoyo 543-781 Digimatic Indicator is a standard-model digital indicator with an ABSOLUTE linear encoder that does not require repeated origin setting, a 0-12.7 mm measuring range, and a resolution of 0.01 mm.

Availability: Sold out

Specifications

Model	ID-S1012X
Range	0-12.7mm
Resolution	0.01mm
Accuracy	.02mm
Stem/Shank	8mm
Contact Point	M2.5x 0.45 Thread
Measuring force	1.5N or less
Type	ISO/JIS
Type	Lug Back
Output	Equipped with SPC data output for data management
Protection	Rated to IP42 for protection against dust and spraying water

Mitutoyo 543-781: Digimatic Indicator

Mitutoyo 543-781: Digimatic Indicator

Mitutoyo 543-397B-10 | Digital Indicator | Type Calculation ID-C | Series 543 | ASME/ANSI Type | Hysteresis 0.0001 inch | Accuracy 0.0001 inch | Range 2 inch

Mitutoyo 543-392B-10 | Digital Indicator | Type Calculation ID-C | Series 543 | ASME/ANSI Type | Hysteresis 0.0001 inch | Accuracy 0.0001 inch | Range 1 inch

Mitutoyo 543-558E | Digital Indicator ID-F | BS AC-Adapter | Inch/Metric | Series 543 | Resolution 0.00005 inch | Accuracy ±0.00012 inch | Range 0 to 2 inch

Mitutoyo 543-858E | Digital Indicator ID-F | High Accuracy Type | Inch/Metric | Series 543 | Resolution 0.00002 inch | Accuracy ±0.00012 inch | Range 0 to 2 inch

Mitutoyo 543-854E | Digital Indicator ID-F | Inch/Metric | Series 543 | Resolution 0.00002 inch | Accuracy ±0.00016 inch | Range 0 to 2 inch

Mitutoyo 543-852E | Digital Indicator ID-F | Inch/Metric | Series 543 | Resolution 0.00002 inch | Accuracy 0.0001 inch | Range 0 to 1 inch

Mitutoyo 543-857E | Digital Indicator ID-F | High Accuracy Type | Series 543 | Resolution 0.0005 mm | Accuracy 0.003 mm | Range 0 to 50 mm

Meet Us F2F

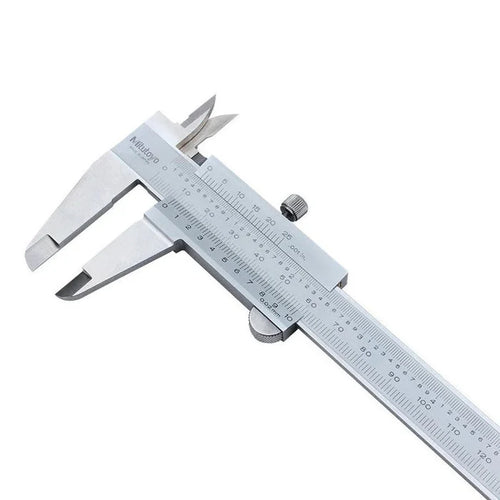

Mitutoyo 530-119: Vernier Caliper, 0-300mm / 0-12inch

Mitutoyo 530-312: Vernier Caliper, 0-150mm / 0-6inch

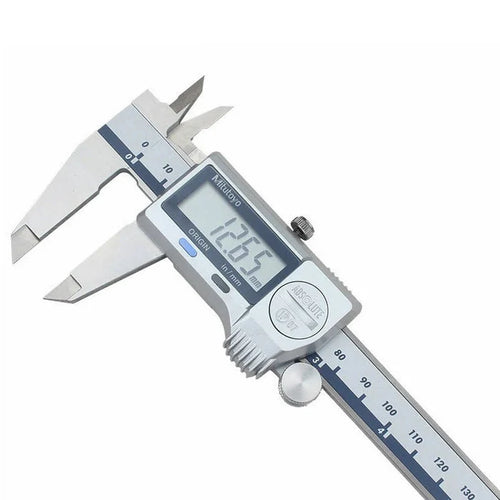

Mitutoyo 500-754-20: Coolant Proof Digital Caliper, 0-12"/300mm- IP67 Spec
