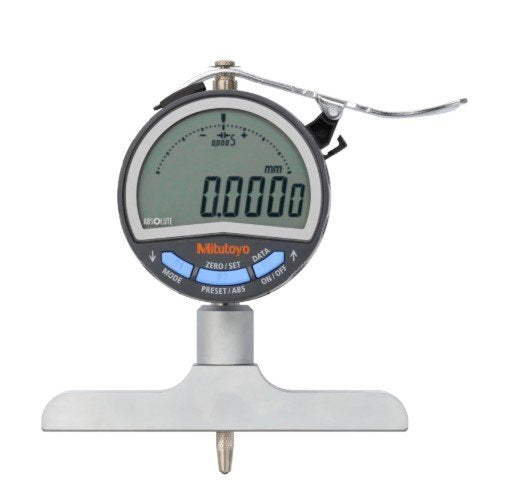

Mitutoyo 547-252A | Digital Depth Gauge | 0.001 mm, 12.7 mm stroke, ±5 µm
With a 0.001 mm digital step and ±5 µm accuracy over a 12.7 mm stroke, the Mitutoyo 547-252A Series 547 digital depth gauge suits fine depth work in quality control. This model weighs 335 g.
- Capacitance-type ABSOLUTE linear encoder
- Carbide ball contact point (M2.5x0.45 thread)
- Preset, ZERO/ABS, lock and data hold functions
- Max/min, calculation function and error alarms for low voltage
- CR2032 battery, approx. 7000 hours
- Metric reading with auto shut-off
- Specifications
- Features
- Downloads
| Part Number | 547-252A |
| Brand | Mitutoyo |
| Series | 547 |
| Type | Digital Depth Gauge |
| Accuracy | ±5 µm |
| Units | Metric |
| Weight | 335 g |
| Auto Shut-off | Yes |
| Battery Life | Approx. 7000 hours |
| Digital Step | 0.001 mm |
| Contact Point | Carbide ball |
| Scale | Capacitance type ABSOLUTE linear encoder |
| Stroke | 12.7 mm (0.500 in) |
| Alarm | Low voltage, setting errors, sensor error, display overflow a.s.o. |
- Precise Digital Readings: Provides measurements with a step of 0.001 mm for high accuracy.
- Stroke: 12.7 mm stroke allows for versatile depth measurements in various tasks.
- High Accuracy: Features an accuracy of ± 5 µm, ensuring reliable and precise results.
- Clear Digital Display: The digital display offers easy-to-read measurements for convenience.
- Weight: Weighs 335 g, providing a solid and comfortable feel during use.
- Professional Use: Ideal for quality control, precision inspections, and depth measurement applications.
