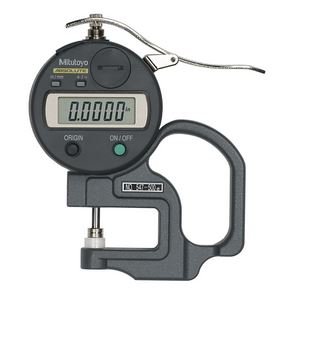

Mitutoyo 547-500S ABS Digital Thickness Gauge with ID-S Inch/Metric, 0-0.47", 0.0005", Standard

Name: Mitutoyo 547-500S ABS Digital Thickness Gauge with ID-S Inch/Metric, 0-0.47", 0.0005", Standard
Brand: Mitutoyo
SKU: 547-500S
Availability: OutOfStock

Part Number : 547-500S

Dial thickness gauges are useful for rapidly determining the thickness of thin materials like paper and felt.
• The bezel and crystal are integrated to prevent water and oil from penetrating through the front face.

• Data output port for use in measurement networking and statistical process control systems.

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Alarm	Low voltage, counting value composition error, overflow error, tolerance limit setting error (ID-C only)
Battery Life	approx. 7000 hours
Calculation function	Yes
Calculation Functions	Yes
Contact point	Thread # 4-48UNF
Counting direction switchable	Yes
DATA(output with cable)/HOLD(display value)	Yes
Digimatic data output	Yes
Digital step	0.0005
GO/+/-NG judgement	Yes
Inch-Metric	Inch/Metric
Indicator No.	543-783BS (ID-S)
Lock function	Yes
Mass (main unit)	225 g
Max. measuring depth	30 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤ 1.5 N
ON/OFF	Yes
Parallelism	0.0005
Power Supply	1 battery SR-44
PRESET	Yes
Range	0 - 0.47 Inch
Scale type	Capacitance type ABSOLUTE linear encoder
Type	Ceramic-tipped contact points
ZERO/ABS	Yes
