Mitutoyo 559-517-54 | NC Linear Scale AT1354-1300-S | S-Type | FANUC Interface Compatibility | Resolution 0.01 ¼m

Name: Mitutoyo 559-517-54 | NC Linear Scale AT1354-1300-S | S-Type | FANUC Interface Compatibility | Resolution 0.01 ¼m
Brand: Mitutoyo
SKU: 559-517-54
Availability: OutOfStock

Part Number : 559-517-54

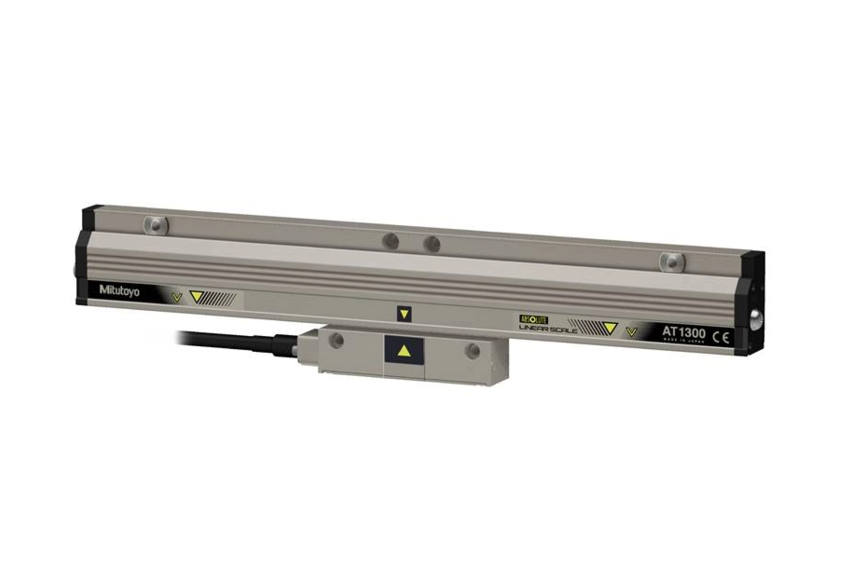

The Mitutoyo 559-517-54 NC Linear Scale (AT1354-1300-S) is a high-precision encoder designed for advanced CNC applications. With a resolution of 0.01 μm, it ensures exceptional accuracy in motion control systems. The S-Type configuration provides robust mechanical design, suitable for high-speed operations. It is fully compatible with FANUC interfaces, facilitating seamless integration into existing systems. Engineered for durability, the scale is resistant to environmental factors such as dust and coolant. Ideal for applications requiring ultra-fine measurement, it supports enhanced productivity and precision in manufacturing processes.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Cable length	: 29 m
Interface	FANUC Interface Compatibility
Length	1300 mm
Max. Response Speed	180 m/min
Model Number	ABSAT1354-1300-S
Power Supply	5 VDC +/- 10% / 270 mA
Resolution	0.01 1/4m
Type	NC Linear Scale
Type	S-Type

Ultra-High Resolution: Provides a resolution of 0.01 μm (10 nanometers), ensuring exceptional precision in motion control systems.
FANUC Interface Compatibility: Designed for seamless integration with FANUC CNC systems, facilitating reliable data communication.
S-Type Configuration: Features a robust mechanical design that offers structural stability and precision in high-speed machining environments.
Extended Measuring Range: Offers a generous 1300 mm measuring length, suitable for large-scale precision machinery.
Environmental Durability: Built to withstand harsh conditions, including exposure to coolant, dust, and oil, ensuring long-term reliability.
Stable Signal Output: Delivers consistent and reliable data for dependable motion control and feedback.
