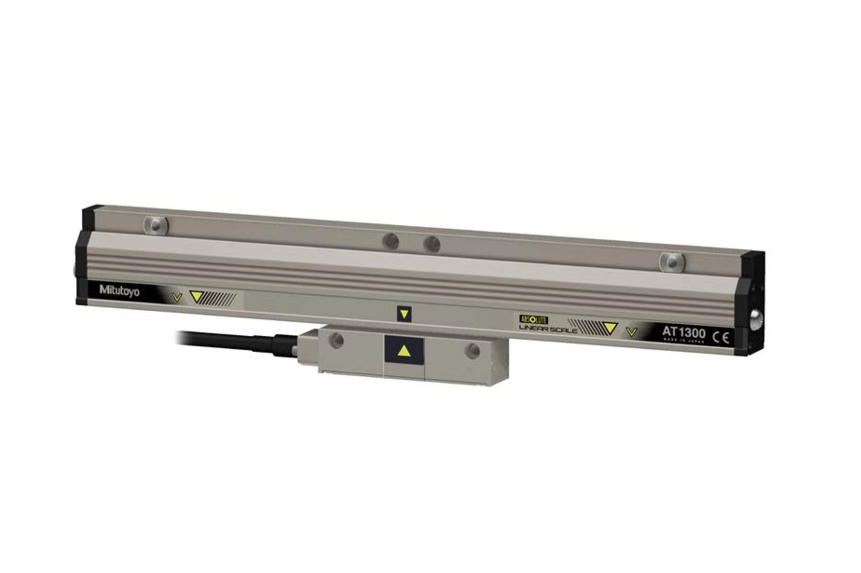

Mitutoyo 559-522-03 | NC Linear Scale AT1303A-2000-S | 50 nm, 2000 mm, ENSIS half duplex
The Mitutoyo 559-522-03 (AT1303A-2000-S) is a S-type NC linear scale with 50 nm resolution and a 2000 mm measuring length, communicating over the Mitutoyo ENSIS (half duplex) interface. The AT1303A-2000-S is used to feed axis position back to the control on CNC machine tools, with a 50 nm step between readings.
- Resolution: 50 nm (0.05 µm) (AT1303A-2000-S)
- 2000 mm effective length on model AT1303A-2000-S
- Interface for AT1303A-2000-S: Mitutoyo ENSIS (half duplex)
- S-Type construction (AT1303A-2000-S)
- Supply 5 VDC ±10% with 270 mA peak current for the 559-522-03
- AT1303A-2000-S supports a combined signal/feedback cable length of up to 29 m
- Specifications
- Features
- Downloads
| Part Number | 559-522-03 |
| Brand | Mitutoyo |
| Model | AT1303A-2000-S |
| Model Number | ABSAT1303A-2000-S |
| Type | S-Type |
| Resolution | 50 nm (0.05 µm) |
| Interface | Mitutoyo ENSIS (half duplex) |
| Power Supply | 5 VDC ±10% |
| Max. Response Speed | 180 m/min |
| Current Consumption | 270 mA max. |
| Cable Length | Max. 29 m (signal + feedback) |
| Measuring Length | 2000 mm (78.7 in) |
| Product | NC linear scale |
- High Resolution: Delivers a 50 nm resolution, enabling precise measurements for advanced applications.
- ENSIS Interface (Half-Duplex): Utilizes the ENSIS interface with half-duplex communication, ensuring stable and reliable data transmission.
- Advanced AT1303A Series Technology: Incorporates the AT1303A-2000-S_50nm technology, designed for high-accuracy applications.
- Durable Construction: Engineered to withstand demanding industrial environments, ensuring long-term reliability.
- Seamless Integration: Compatible with Mitutoyo's measurement systems and CNC machinery, facilitating smooth integration.
- Extended Measuring Length: Provides a 2000 mm measuring range, suitable for large-scale equipment.
