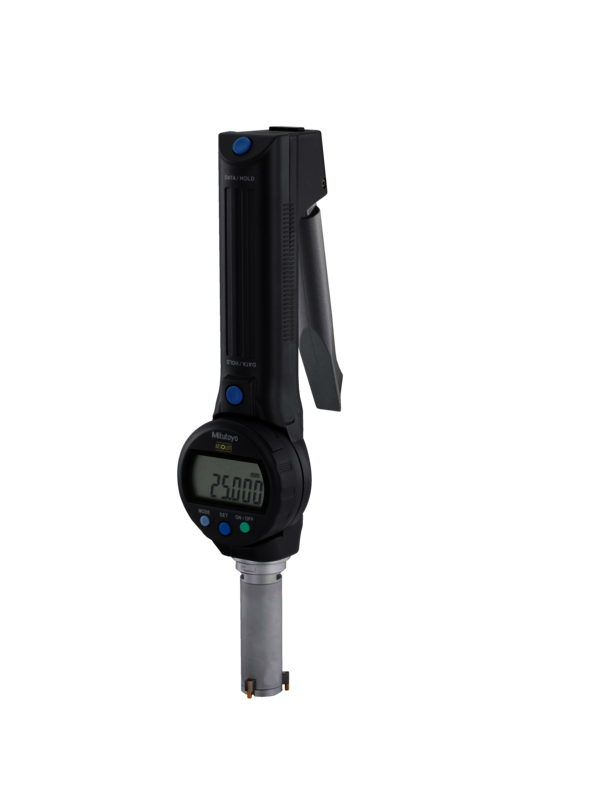

Mitutoyo 568-470 Digital ABS Borematic (Internal) Inch/Metric, 2-2.5"

Part Number: Mitutoyo 568-470

The Mitutoyo 568-470 digital bore gauge is a dedicated, single-range internal micrometer for bores of 2"–2.5" (50.8–63.5 mm). Its three-point head self-centres and the ABSOLUTE display shows the diameter instantly, with a GO/±NG result when limits are set. Request a quote in under a minute: call or WhatsApp +965 9807 4888.

When the same bore size comes up every day, a dedicated gauge is faster than any kit. The Mitutoyo 568-470 digital bore gauge is built for one range, 2"–2.5" (50.8–63.5 mm), with the head and ABSOLUTE display permanently paired, so there is nothing to assemble before measuring.

Because the head touches the wall at three points, it aligns itself on the bore axis. Operators get the same reading from shift to shift, which is what repeatable inspection depends on. Mitutoyo's ABSOLUTE encoder keeps the origin in memory between power cycles. Switch on and measure; there is no reference hunt and no overspeed error.

The 330° rotatable display can be read at bench height or deep inside a fixture, and the GO/±NG judgment function flags out-of-tolerance parts on the spot. It is a natural fit for pump casings, hydraulic cylinder bores, valve bodies and larger bearing housings.

Keep the contact faces clean and store the Mitutoyo 568-470 digital bore gauge in its case between jobs. In hot Kuwait workshops, also allow the part to cool: at 63.5 mm, a 10 °C temperature gap moves a steel part by roughly 7.3 μm, more than the resolution of a precision instrument.

Need a larger range? See the Mitutoyo 568-471 for 2.5"–3". Measuring several neighbouring sizes? The Mitutoyo 568-968 complete set also covers 2"–2.5".

Key Benefits

• Dedicated to one size — no heads to change, ideal for repeat production checks

• Pass/fail on the display — GO/±NG judgment flags out-of-tolerance bores without a tolerance chart

• Read from any angle — the LCD rotates through 330° for awkward fixtures and deep parts

• Built for daily use — titanium-coated pins resist wear and impact

• SPC-ready — HOLD function and data output for quality records

• Self-centring accuracy — three contact points align the head on the bore axis for repeatable readings

• Instant digital readings — ABSOLUTE encoder, no re-zeroing at power-on and 0.001 mm resolution

Ready to order the Mitutoyo 568-470? Call or WhatsApp +965 9807 4888 for a fast quote.

Who This Product Is Best For

• CNC and conventional machine shops holding tight tolerances on 2"–2.5" bores

• Oil, gas and utilities maintenance teams in Kuwait checking pump casings

• QC and inspection teams that need a clear GO/NG decision at the machine

• Calibration and metrology labs th
