Mitutoyo 568-929 Digital ABS Borematic (Internal) Set Inch/Metric, 0.5-1", Interch. Head Set
Part Number: Mitutoyo 568-929
The Mitutoyo 568-929 interchangeable head bore gauge covers 0.5"–1" (12.7–25.4 mm) using one ABSOLUTE digital display and a set of three-point measuring heads that can be swapped for different bore sizes. One kit provides multiple measurement ranges without requiring a separate complete gauge for every size. Request a quote in under a minute: call or WhatsApp +965 9807 4888.
Workshops that measure different bore sizes between 0.5"–1" can use the Mitutoyo 568-929 with its ABSOLUTE digital display unit and interchangeable three-point measuring heads. The operator can change the appropriate measuring head rather than replacing the complete instrument.
Three evenly spaced contact points help align the measuring head with the bore axis, supporting repeatable measurements. The ABSOLUTE encoder retains the origin between power cycles, so the gauge does not require re-zeroing each time it is switched on. Measurements are displayed directly on the LCD with 0.00005" / 0.001 mm resolution.

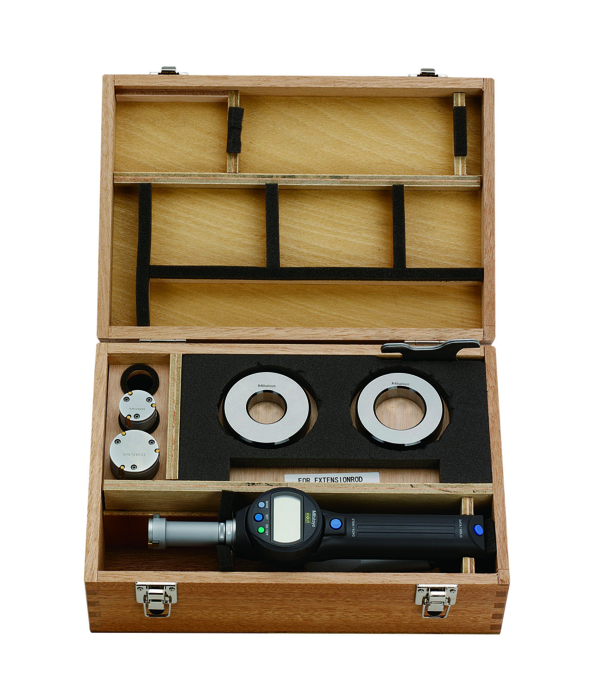

The kit includes the measuring unit with interchangeable heads, storage box, key, one battery and a certificate of inspection. Titanium-coated measuring pins are designed for repeated contact with machined components. Typical applications include bearing seats, hydraulic fittings, small pump housings and bushing bores.
Temperature can affect dimensional measurements. Allow the workpiece and the Mitutoyo 568-929 interchangeable head bore gauge to reach the same temperature before taking a final measurement, particularly when moving components between different workshop and inspection-room temperatures.

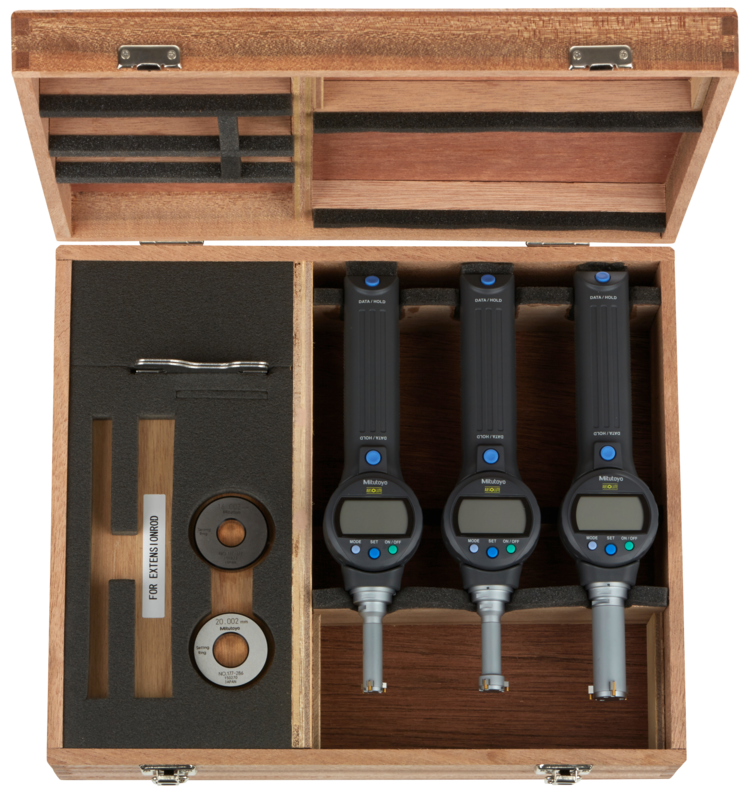

For larger bore ranges, the Mitutoyo 568-930 covers 1"–2". The Mitutoyo 568-966 complete unit set starts at the same size and includes a setting ring.
Key Benefits
-
Instant digital readings — ABSOLUTE encoder with no re-zeroing required at power-on and 0.001 mm resolution
-
One display, several ranges — interchangeable heads provide multiple bore measurement ranges
-
GO/±NG judgment — provides tolerance judgment directly on the display
-
330° rotatable LCD — supports reading from different viewing angles
-
Titanium-coated measuring pins — designed for repeated measurement applications
-
SPC-ready — HOLD function and data output support quality-control records
-
Self-centring measurement — three contact points help align the head with the bore axis
-
Inch/Metric switching — supports both measurement systems
Ready to order the Mitutoyo 568-929? Call or WhatsApp +965 9807 4888 for a fast quote.
Who This Product Is Best For
-
CNC and conventional machine shops measuring 0.5"–1" bores
-
Job shops handling multiple bore sizes that want one digital display with interchangeable heads
-
Oil, gas and utilities maintenance teams in Kuwait
-
QC and inspection teams requiring clear GO/±NG judgment
-
Calibration and metrology laboratories requiring ABSOLUTE-encoder measurement
-
Buyers replacing conventional dial bore gauges with an interchangeable-head digital Borematic
How to Use
-
Fit the measuring head that matches the nominal bore size.
-
Zero the display against a suitable setting ring or master of known size within the required range.
-
Insert the three-point measuring head squarely into the bore.
-
Allow the measuring pins to settle against the bore wall.
-
Read the internal diameter directly from the LCD.
-
If tolerance limits are configured, check the displayed GO/±NG result.
-
Use the HOLD function or data output when measurements need to be retained or transferred for SPC records.
Frequently Asked Questions
What bore range does the Mitutoyo 568-929 measure?
The Mitutoyo 568-929 measures internal diameters from 0.5"–1" (12.7–25.4 mm) with Inch/Metric display switching.
How is a three-point Borematic different from a dial bore gauge?
A dial bore gauge generally requires a separate indicator and a sweep to locate the turning point. The Borematic uses three contact points to align the measuring head inside the bore and displays the measured diameter digitally.
What does interchangeable head mean?
The digital display unit accepts different three-point measuring heads. The appropriate head can be fitted according to the bore size, allowing one kit to cover the specified 0.5"–1" range.
How long does the battery last?
The supplied specifications indicate approximately 5,000 hours of battery life.
Which Borematic should I choose if my bore is outside 0.5"–1"?
Select a model whose measurement range covers the required bore. The 568-929 covers 0.5"–1", the 568-928 covers 0.275"–0.5", and the 568-930 covers 1"–2". Dedicated individual units may also be suitable when only one specific bore range is required.
Can the Mitutoyo 568-929 be recalibrated after purchase?
Yes. The gauge can be periodically recalibrated through an appropriate ISO/IEC 17025-accredited calibration service to maintain measurement traceability.
How can I achieve accurate measurements with the Mitutoyo 568-929?
Use the appropriate measuring head, zero the display against a suitable reference, position the three-point head squarely in the bore and allow the measuring contacts to settle before recording the reading. Keeping the gauge and workpiece at the same temperature also helps minimize temperature-related measurement variation.
How do I order the Mitutoyo 568-929 interchangeable head bore gauge in Kuwait?
Pricing is quote-based. Call or WhatsApp +965 9807 4888 with the model number and required quantity to confirm price and availability.
