Mitutoyo 579-423-51 | Absolte Tape Scale | Series ST1300 | Maximum Effective Length 12 m | Maximum Response Speed 8 m/s | Minimum Resolution 0.001 µm

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 579-423-51

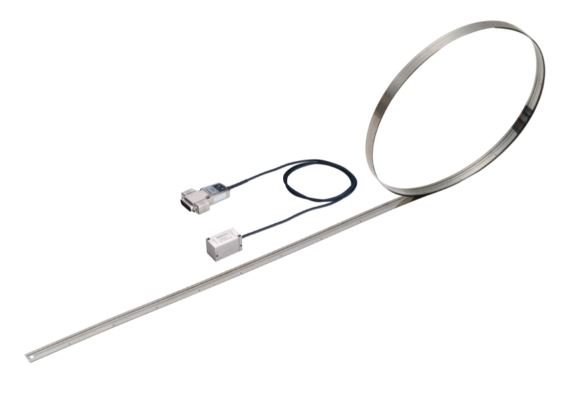

The Mitutoyo 579-423-51 is a high-precision Absolute Tape Scale from the ST1300 series, designed for ultra-accurate linear measurements over extended distances. It offers a maximum effective length of 12 meters, making it suitable for large-scale applications. With a minimum resolution of 0.001 µm (1 nanometer), it provides exceptional measurement detail. The scale supports a maximum response speed of 8 meters per second, ensuring rapid data acquisition. Its advanced detection technology enhances robustness against contamination, and it offers flexible mounting options, including double-sided tape and tension mounting methods.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Interface	FANUC high-speed serial interface (+/- and +/-i interface are available)
Length	Effective : 12 m
Max. Response Speed	8 m Or s
Model Number	ST1351A-1500E
Resolution	0.001 µm
Series	Series ST1300
Type	Linear Scale

Ultra-High Resolution (0.001 µm)
Provides outstanding measurement accuracy with a minimum resolution of 0.001 µm, perfect for applications requiring fine measurement detail.
Extended Measuring Range
Capable of measuring up to a maximum effective length of 12 meters, making it ideal for large-scale industrial and precision measurement systems.
High-Speed Response
Supports a maximum response speed of 8 m/s, allowing for quick and efficient data acquisition in high-speed applications.
Advanced Detection Technology
Employs an advanced detection method that improves its resistance to contamination, ensuring long-term stable performance in harsh environments.
Flexible Mounting Options
Offers versatile installation with options for double-sided tape and tension mounting, providing flexibility for various application needs.

DOWNLOAD CATALOG
