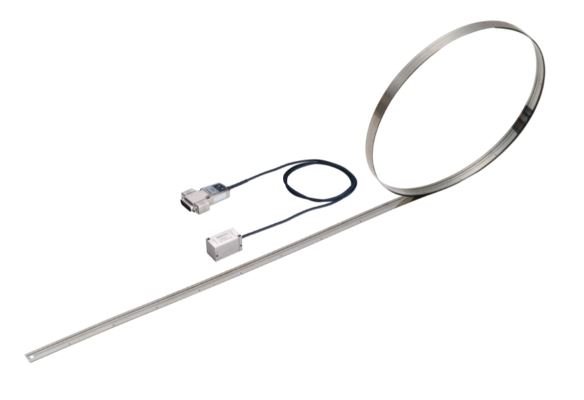

Mitutoyo 579-434-56 | Absolute Tape Scale | ST1300, model ST1352A-500G, 12 m max. length
Supplied as model ST1352A-500G, the Mitutoyo 579-434-56 absolute tape scale belongs to the ST1300 Series and reads to 0.001 µm over a maximum effective length of 12 m. Model ST1352A-500G is aimed at linear measurement over extended distances.
- 579-434-56 resolves down to 0.001 µm
- Responds at up to 8 m/s as model ST1352A-500G
- Up to 12 m maximum effective length on the 579-434-56
- Connects via FANUC high-speed serial interface (579-434-56)
- Contamination-resistant detection on model ST1352A-500G
- Flexible mounting options are stated for the 579-434-56
- Specifications
- Features
- Downloads
| Part Number | 579-434-56 |
| Brand | Mitutoyo |
| Model Number | ST1352A-500G |
| Series | ST1300 |
| Type | Absolute Tape Scale |
| Resolution | 0.001 µm |
| Interface | FANUC high-speed serial |
| Max. Response Speed | 8 m/s |
| Max. Effective Length | 12 m (39.4 ft) |
| Contamination Resistance | Yes |
- Ultra-High Resolution (0.001 µm)
- Delivers exceptional measurement precision with a resolution of 0.001 µm (1 nanometer), ideal for highly accurate and detailed measurements.
- Long Measuring Range
- Supports a maximum effective length of 12 meters, making it suitable for large-scale applications and long-distance measurements.
- High-Speed Performance
- Capable of handling a maximum response speed of 8 m/s, ensuring quick and efficient data acquisition for fast-paced industrial processes.
- Contamination Resistance
- Features enhanced protection against environmental contaminants, ensuring stable and reliable performance even in challenging conditions.
- Flexible Mounting Options
- Offers versatile installation methods, including double-sided tape and tension mounting, for seamless integration into a variety of systems and setups.
