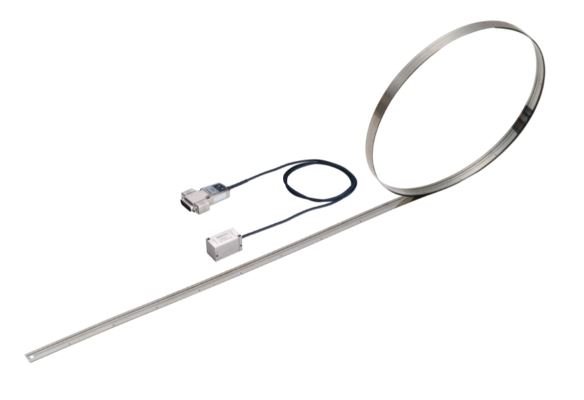

Mitutoyo 579-435-56 | Absolute Tape Scale | ST1300, model ST1352A-600G, 12 m max. length
Mitutoyo 579-435-56 (model ST1352A-600G) is an absolute tape scale in the ST1300 Series, offering 0.001 µm minimum resolution and up to 12 m of effective length. Stated applications for model ST1352A-600G include CNC machines and precision machining.
- Resolution of model ST1352A-600G: 0.001 µm
- 579-435-56 handles a maximum response speed of 8 m/s
- Effective length of the 579-435-56: up to 12 m
- 579-435-56 uses a FANUC high-speed serial interface
- No homing or re-referencing after power cycles on the 579-435-56, as position is held absolutely
- Specifications
- Features
- Downloads
| Part Number | 579-435-56 |
| Brand | Mitutoyo |
| Model Number | ST1352A-600G |
| Series | ST1300 |
| Type | Absolute Tape Scale |
| Resolution | 0.001 µm |
| Interface | FANUC high-speed serial |
| Max. Response Speed | 8 m/s |
| Max. Effective Length | 12 m (39.4 ft) |
| Position Data | Retained after power loss |
- Maximum Effective Length: 12 meters (12,000 mm)
- Provides extended measurement range for large-scale applications.
- Maximum Response Speed: 8 m/s
- Handles fast movements with high-speed response for dynamic environments.
- Minimum Resolution: 0.001 µm (1 nanometer)
- Offers exceptional precision, capable of detecting even the smallest variations.
- Absolute Encoder Technology:
- Maintains position data even after power loss, eliminating the need for re-referencing during power cycles.
- Durability and Reliability:
- Built to withstand harsh industrial conditions, ensuring consistent performance in various environments.
