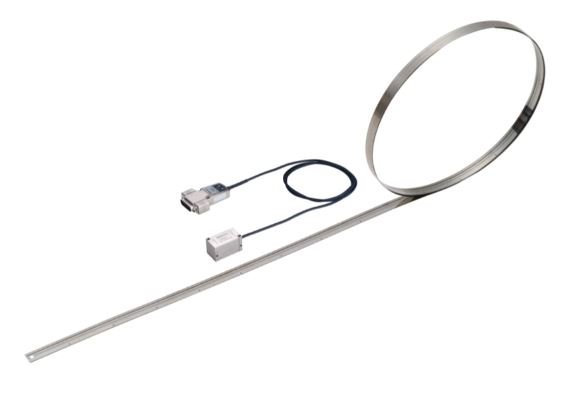

Mitutoyo 579-436-53 | Absolute Tape Scale | Series ST1300 | Maximum Effective Length 12 m | Maximum Response Speed 8 m/s | Minimum Resolution 0.001 µm
The Mitutoyo 579-436-53 Absolute Tape Scale from the ST1300 series is a linear encoder that
measures position along a 12 meter length using Mitutoyo's Absolute Encoder technology,
retaining exact position data even after a power loss, so machines never need re-referencing on
restart.
General Tech Services supplies this Mitutoyo absolute tape scale across the UAE, and every unit
can also be calibrated through our own ISO 17025 accredited calibration service, giving you a
single trusted source for both the instrument and its certification.
Built for CNC and large-format machine setups, it delivers a maximum response speed of 8 m/s
and a resolution of 0.001 microns, communicating through a FANUC high-speed serial interface for
fast, accurate positional feedback in demanding industrial environments.
This absolute tape scale is ideal for manufacturers and machine builders across Dubai, Abu Dhabi,
and Sharjah who need long-travel linear measurement without the downtime of re-homing after
every power cycle.
Contact our team now for current stock, pricing, and same-week UAE delivery on this Mitutoyo
ST1300 series tape scale.
- Specifications
- Features
- Downloads
| Part Number | 579-436-53 |
| Brand | Mitutoyo |
| Model Number | ST1351A-700F |
| Series | ST1300 |
| Type | Absolute Tape Scale |
| Resolution | 0.001 µm |
| Interface | FANUC high-speed serial interface (+/- and +/-i interface are available) |
| Max. Response Speed | 8 m/s |
| Length | 12 m (effective) |
- Maximum Effective Length: 12 meters (12,000 mm)
- Ideal for long-distance measurements in various industrial applications.
- Maximum Response Speed: 8 m/s
- Capable of handling high-speed movements, making it suitable for dynamic environments.
- Minimum Resolution: 0.001 µm (1 nanometer)
- Provides ultra-fine precision, detecting minute positional changes.
- Absolute Encoder Technology:
- Retains position data even after power loss, eliminating the need for re-referencing.
- Durability and Reliability:
- Designed to withstand harsh industrial conditions, ensuring consistent performance in various environments.
