Part Number : 579-443-54

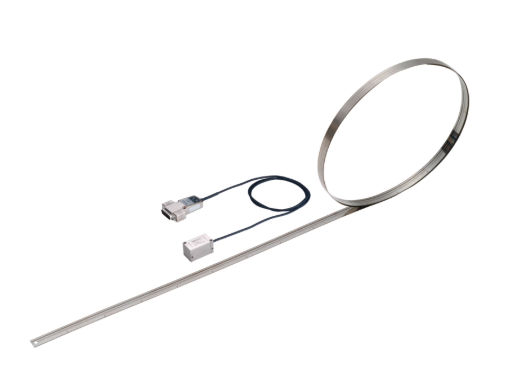

The Mitutoyo 579-443-54 is an absolute tape scale from the ST1300 Series, engineered for high-precision linear measurement applications. It offers a maximum effective length of 12 meters, making it suitable for both short and long-range measurement tasks. With a minimum resolution of 0.001 µm, it ensures exceptional accuracy in positioning. The scale supports a maximum response speed of 8 m/s, ideal for high-speed operations. Its absolute measuring system eliminates the need for referencing after power cycles, enhancing operational efficiency. Designed for durability, it performs reliably in demanding industrial environments.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Interface	FANUC high-speed serial interface (+/- and +/-i interface are available)
Length	12 m
Max. Response Speed	8 m/s
Model Number	ST1352A-1400F
Resolution	0.001 µm
Series	ST1300
Type	Absolute Tape Scale

Absolute Positioning System: Maintains position data even after power-down, removing the need for re-homing.
Extended Measuring Capability: Supports up to 12 meters of effective measurement length, ideal for large-scale equipment.
Ultra-High Resolution: Provides 0.001 µm resolution for extremely precise linear measurements.
High-Speed Operation: Capable of tracking motion at speeds up to 8 m/s, suitable for rapid industrial processes.
Durable and Reliable Design: Engineered for robust performance in harsh industrial environments.
Flexible Tape Format: Slim, compact design allows for seamless integration into tight or complex machine layouts.
