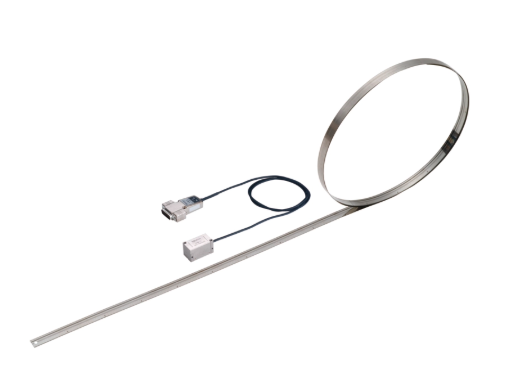

Mitutoyo 579-444-53 | Absolute Tape Scale | ST1351A-1500F, 12 m, 0.001 µm
Model ST1351A-1500F in the Mitutoyo ST1300 Series, the 579-444-53 is an absolute tape scale for linear measurement over a maximum effective length of 12 m. It resolves down to 0.001 µm, tracks movement at up to 8 m/s and, being absolute, the 579-444-53 does not have to be referenced again after switching on.
- Model number ST1351A-1500F (Mitutoyo code 579-444-53)
- Up to 12 m maximum effective length
- Resolution down to 0.001 µm
- 8 m/s maximum response speed
- FANUC high-speed serial interface output
- Absolute scale: position available at switch-on
- Specifications
- Features
- Downloads
| Part Number | 579-444-53 |
| Brand | Mitutoyo |
| Model Number | ST1351A-1500F |
| Series | ST1300 |
| Type | Absolute Tape Scale |
| Resolution | 0.001 µm |
| Interface | FANUC high-speed serial interface |
| Max. Response Speed | 8 m/s |
| Max. Effective Length | 12 m (39.4 ft) |
- Absolute Measurement System: Maintains position data even after power loss, eliminating the need for re-referencing.
- Extended Measurement Range: Supports a maximum effective length of 12 meters, suitable for a variety of applications.
- Ultra-High Resolution: Delivers 0.001 µm resolution for extremely precise linear measurements.
- High-Speed Performance: Capable of operating at speeds up to 8 m/s, ideal for fast-moving industrial systems.
- Industrial Durability: Designed to perform reliably in harsh environments, ensuring long-term accuracy and stability.
- Compact and Flexible Design: The tape scale's slim form factor allows for seamless integration into tight or complex machine setups.
