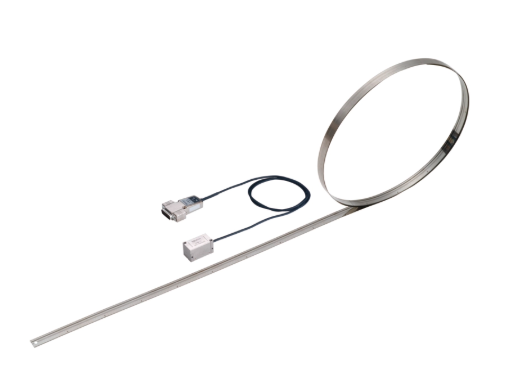

Mitutoyo 579-445-52 | Absolute Tape Scale | ST1352A-1600D, 12 m, 0.001 µm
The Mitutoyo 579-445-52 is an ST1300 Series absolute tape scale, model ST1352A-1600D, offering a maximum effective length of 12 m with 0.001 µm minimum resolution and a maximum response speed of 8 m/s. It is used for linear position measurement, and because it measures absolutely, the 579-445-52 needs no re-referencing after a power cycle.
- Model number ST1352A-1600D (Mitutoyo code 579-445-52)
- Maximum effective length of 12 m, 579-445-52
- Minimum resolution 0.001 µm on the 579-445-52
- Maximum response speed 8 m/s (579-445-52)
- FANUC high-speed serial interface for the 579-445-52
- Absolute measurement with no re-referencing after power-on, 579-445-52
- Specifications
- Features
- Downloads
| Part Number | 579-445-52 |
| Brand | Mitutoyo |
| Model Number | ST1352A-1600D |
| Series | ST1300 |
| Type | Absolute Tape Scale |
| Resolution | 0.001 µm |
| Interface | FANUC high-speed serial interface |
| Max. Response Speed | 8 m/s |
| Max. Effective Length | 12 m (39.4 ft) |
- Absolute Measurement System: Retains position data after power cycles, removing the need for re-homing.
- 12 m Maximum Measuring Length: Perfect for long-travel applications in industrial machinery.
- Precision Resolution: Achieves 0.001 µm resolution for extremely accurate and detailed measurements.
- High-Speed Operation: Supports up to 8 m/s response speed for fast and dynamic systems.
- Rugged and Durable: Built for reliability in harsh industrial environments.
- Compact and Flexible Design: The slim, flexible tape allows easy integration in constrained or complex spaces.
