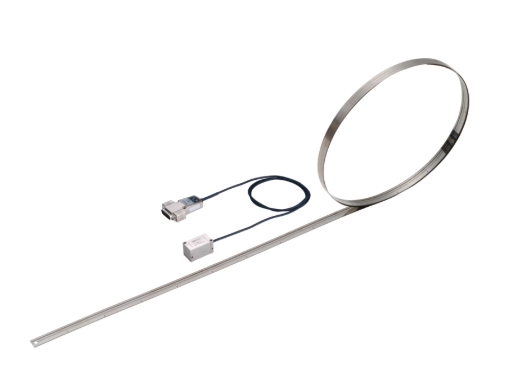

Mitutoyo 579-445-54 | Absolute Tape Scale | ST1352A-1600F, 12 m, 0.001 µm
Model ST1352A-1600F in the Mitutoyo ST1300 Series, the 579-445-54 is an absolute tape scale for linear measurement over a maximum effective length of 12 m. It resolves down to 0.001 µm, tracks movement at up to 8 m/s and, being absolute, the 579-445-54 does not have to be referenced again after switching on.
- Model number ST1352A-1600F (Mitutoyo code 579-445-54)
- Up to 12 m maximum effective length (579-445-54)
- Resolution down to 0.001 µm for the 579-445-54
- 8 m/s maximum response speed, 579-445-54
- FANUC high-speed serial interface output on the 579-445-54
- Absolute scale: position available at switch-on (579-445-54)
- Specifications
- Features
- Downloads
| Part Number | 579-445-54 |
| Brand | Mitutoyo |
| Model Number | ST1352A-1600F |
| Series | ST1300 |
| Type | Absolute Tape Scale |
| Resolution | 0.001 µm |
| Interface | FANUC high-speed serial interface |
| Max. Response Speed | 8 m/s |
| Max. Effective Length | 12 m (39.4 ft) |
- Absolute Measurement System: Remembers position after power-off—no need for re-homing.
- Long-Range Measurement: Covers up to 12 meters, ideal for extensive travel machinery.
- Ultra-Fine Resolution: Provides 0.001 µm resolution for highly accurate measurements.
- High-Speed Compatibility: Operates efficiently at speeds up to 8 m/s for fast applications.
- Reliable in Harsh Conditions: Designed for durability and stability in industrial environments.
- Compact Tape Format: Flexible and easy to install in tight or complex system configurations.
