Mitutoyo 579-445-55 | Absolute Tape Scale | ST1351A-1600G, 12 m, 0.001 µm

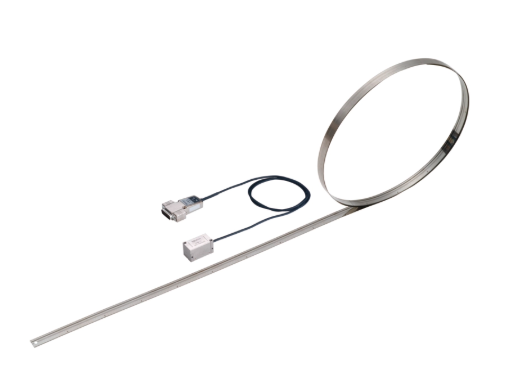

The Mitutoyo 579-445-55 is an ST1300 Series absolute tape scale, model ST1351A-1600G, offering a maximum effective length of 12 m with 0.001 µm minimum resolution and a maximum response speed of 8 m/s. It is used for linear position measurement, and because it measures absolutely, the 579-445-55 needs no re-referencing after a power cycle.
- Model number ST1351A-1600G (Mitutoyo code 579-445-55)
- Maximum effective length of 12 m for the 579-445-55
- Minimum resolution 0.001 µm, 579-445-55
- Maximum response speed 8 m/s on the 579-445-55
- FANUC high-speed serial interface (579-445-55)
- Absolute measurement with no re-referencing after power-on for the 579-445-55
- Specifications
- Features
- Downloads
| Part Number | 579-445-55 |
| Brand | Mitutoyo |
| Model Number | ST1351A-1600G |
| Series | ST1300 |
| Type | Absolute Tape Scale |
| Resolution | 0.001 µm |
| Interface | FANUC high-speed serial interface |
| Max. Response Speed | 8 m/s |
| Max. Effective Length | 12 m (39.4 ft) |
- Absolute Measurement System: Retains position data after power-off, eliminating the need for re-homing.
- Extended Measuring Range: Supports up to 12 meters, suitable for large-scale applications.
- Ultra-High Resolution: Provides 0.001 µm resolution for exceptional measurement accuracy.
- High-Speed Performance: Operates at speeds up to 8 m/s, ideal for dynamic systems.
- Industrial Durability: Designed to perform reliably in harsh environments, ensuring long-term stability.
- Flexible Installation Options: Offers double-sided tape mounting for easy integration into various setups.
