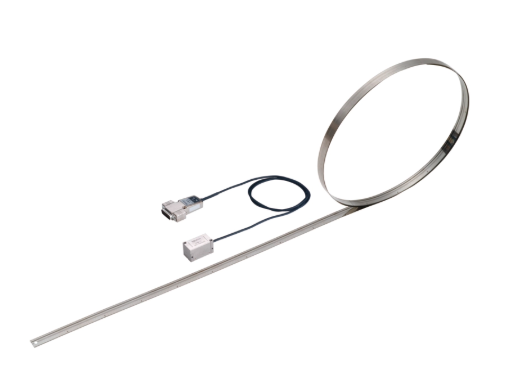

Mitutoyo 579-445-56 | Absolute Tape Scale | ST1352A-1600G, 12 m, 0.001 µm
Supplied as model ST1352A-1600G, the Mitutoyo 579-445-56 belongs to the ST1300 Series of absolute tape scales and covers up to 12 m of effective length at a resolution of 0.001 µm. Response speed reaches 8 m/s, and the absolute system lets the 579-445-56 keep its position reference when power is restored.
- Model number ST1352A-1600G (Mitutoyo code 579-445-56)
- Effective length up to 12 m, 579-445-56
- 0.001 µm resolution on the 579-445-56
- Response speed up to 8 m/s (579-445-56)
- Connects via FANUC high-speed serial interface for the 579-445-56
- Absolute system keeps position through power cycles, 579-445-56
- Specifications
- Features
- Downloads
| Part Number | 579-445-56 |
| Brand | Mitutoyo |
| Model Number | ST1352A-1600G |
| Series | ST1300 |
| Type | Absolute Tape Scale |
| Resolution | 0.001 µm |
| Interface | FANUC high-speed serial interface |
| Max. Response Speed | 8 m/s |
| Max. Effective Length | 12 m (39.4 ft) |
- Absolute Measurement System: Retains position data after power-off, eliminating the need for re-homing.
- Extended Measuring Range: Supports up to 12 meters, suitable for large-scale applications.
- Ultra-High Resolution: Provides 0.001 µm resolution for exceptional measurement accuracy
- High-Speed Performance: Operates at speeds up to 8 m/s, ideal for dynamic systems.
- Industrial Durability: Designed to perform reliably in harsh environments, ensuring long-term stability.
- Flexible Installation Options: Offers double-sided tape mounting for easy integration into various setups.
