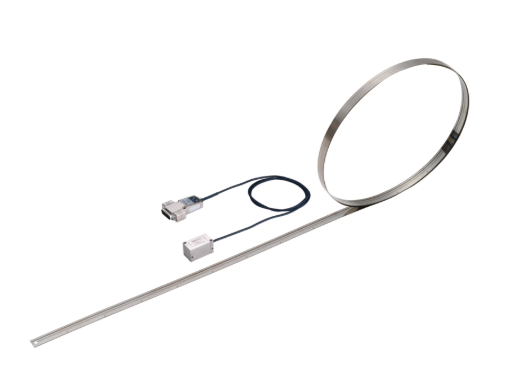

Mitutoyo 579-446-54 | Absolute Tape Scale | ST1352A-1700F, 12 m, 0.001 µm
Supplied as model ST1352A-1700F, the Mitutoyo 579-446-54 belongs to the ST1300 Series of absolute tape scales and covers up to 12 m of effective length at a resolution of 0.001 µm. Response speed reaches 8 m/s, and the absolute system lets the 579-446-54 keep its position reference when power is restored.
- Model number ST1352A-1700F (Mitutoyo code 579-446-54)
- Effective length up to 12 m for the 579-446-54
- 0.001 µm resolution, 579-446-54
- Response speed up to 8 m/s on the 579-446-54
- Connects via FANUC high-speed serial interface (579-446-54)
- Absolute system keeps position through power cycles for the 579-446-54
- Specifications
- Features
- Downloads
| Part Number | 579-446-54 |
| Brand | Mitutoyo |
| Model Number | ST1352A-1700F |
| Series | ST1300 |
| Type | Absolute Tape Scale |
| Resolution | 0.001 µm |
| Interface | FANUC high-speed serial interface |
| Max. Response Speed | 8 m/s |
| Max. Effective Length | 12 m (39.4 ft) |
- Maximum Effective Length: Up to 12 meters, suitable for long-range measurement applications.
- High Resolution: Offers ultra-fine resolution of 0.001 µm for precise positioning.
- High-Speed Response: Supports maximum response speeds of 8 m/s, ideal for dynamic operations.
- Absolute Measurement System: Delivers immediate position feedback without requiring homing.
- Robust Construction: Engineered for stability and durability in industrial environments.
- Versatile Integration: Compatible with advanced CNC, metrology, and automation systems.
