Mitutoyo 7221A | Dial Indicator Depth Gauge | Series 7 | Graduation 0.01mm | Accuracy ±15 µm | Range 0 to 200mm

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 7221A

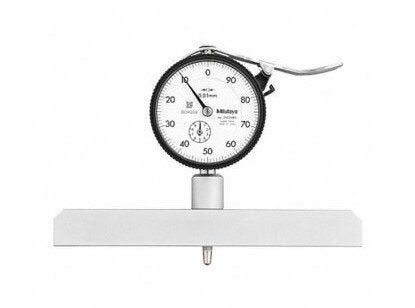

The Mitutoyo 7221A Dial Indicator Depth Gauge (Series 7) is designed for precise depth measurements over a larger range. It features a graduation of 0.01mm and an accuracy of ±15µm, ensuring highly accurate readings. With a measurement range of 0 to 200mm, it is ideal for measuring deep holes and recesses. The gauge is built for durability, offering long-term reliability even in demanding environments. Its clear dial display allows for easy and accurate reading of measurements. This depth gauge is widely used in precision engineering, manufacturing, and quality control.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-15 µm
Analog/Digital	Analog
Extension rod	10, 20, 30, 30, 100 mm
Flatness	5 µm
Graduation	0.01 mm
Inch-Metric	Metric
Probe Type	Ball, R = 1.5 mm
Series	7
Stroke	10 mm
Type	Dial Indicator Depth Gauge
Weight	500 g

Graduation: 0.01mm for precise depth measurements.
Accuracy: ±15µm for reliable and consistent results.
Range: 0 to 200mm, ideal for measuring deep holes and recesses.
Series 7: Known for its durability and precision in industrial applications.
Clear Dial Display: Easy-to-read scale for quick and accurate measurement interpretation.
Durable Construction: Built for long-term reliability in demanding environments.
