Part Number : 810-445-13-ASET

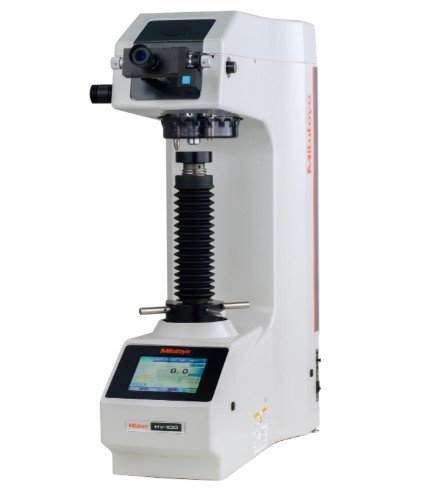

The Mitutoyo 810-445-13-ASET Vickers Hardness Testing Machine (HV-120 A-Type Set) offers high-precision hardness testing using the Vickers scale. It operates efficiently within a temperature range of 5°C to 40°C, ensuring reliable results in diverse environments. With a vibration frequency of 10Hz or lower, it minimizes external interference for accurate measurements. Weighing 58.1 kg, the machine provides stability and durability during testing. The A-Type Set includes additional accessories, enhancing its versatility for different testing applications. The HV-120 A-Type Set delivers consistent, repeatable results, making it ideal for quality control and material analysis.

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Control Type	5.7" touch screen display control
Control Type	Turret: Touch panel
Data Output	RS-232C, SPC Digimatic D-type connection, USB
Drive method	Turret: Motor/Manual
Height	Specimen: 210 mm
Indenters	Approach speed: selectable 60 1/4m/s/150µm/s
Light Source	White LED
Mass (main unit)	58.1 kg
Objective Zoom	MH Plan 10x and 20x
Operation temperature	5-40°C
Optical system	Infinitely corrected
Port	Indenter: 1 (equipped)
Port	Objective Len: 3 (2 equipped)
POWER CONSUMPTION	24 W
Power Supply	AC100 -240V Auto-selection
Range	Test Force: 2.942-294.2N (0,3-30kgf)
Relative Humidity	80% or lower without condensation
Resolution	0.01 HV units (settable)
Standards	Vickers: ISO 6507-2, ASTM E92, ASTM E384, JIS B 7725
Switch Type	Test Force: Touch panel
Test force duration	5-999s. 1 s. increments
Throat Depth	170 mm
Type	Vickers Hardness Testing Machine
Vibration	10Hz or lower
WATER VOLUME	11AAB941
Weight	Specimen: 20 kg
XY Stage Size	Optional

Vickers Hardness Testing: Provides accurate and reliable hardness measurements using the Vickers scale for various materials.
Temperature Range: Operates efficiently between 5°C and 40°C, ensuring stable performance in different environmental conditions.
Low Vibration: Vibration frequency of 10Hz or lower reduces external disturbances, ensuring precise test results.
Stable Build: Weighs 58.1 kg, providing excellent stability and durability during testing.
A-Type Set Accessories: Includes additional accessories to enhance versatility and expand testing capabilities.
Consistent and Repeatable: Delivers reliable, high-precision results, ideal for material analysis and quality control applications.
